PROFET ONE4ALL MB V1

SMART7 PROFET+2 12V and PROFET™ Load Guard 12V motherboard
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

PROFET ONE4ALL MB V1
PROFET ONE4ALL MB V1
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    High-side switches, PROFET™ +2 12V, PROFET™ Load Guard 12V
  • Input Type
    DC
  • Qualification
    Automotive
  • Supply Voltage
    -16 V to 35 V
  • Target Application
    Automotive
  • Topology
    High-side switch
Recommended
OPN
PROFETONE4ALLMBV1TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

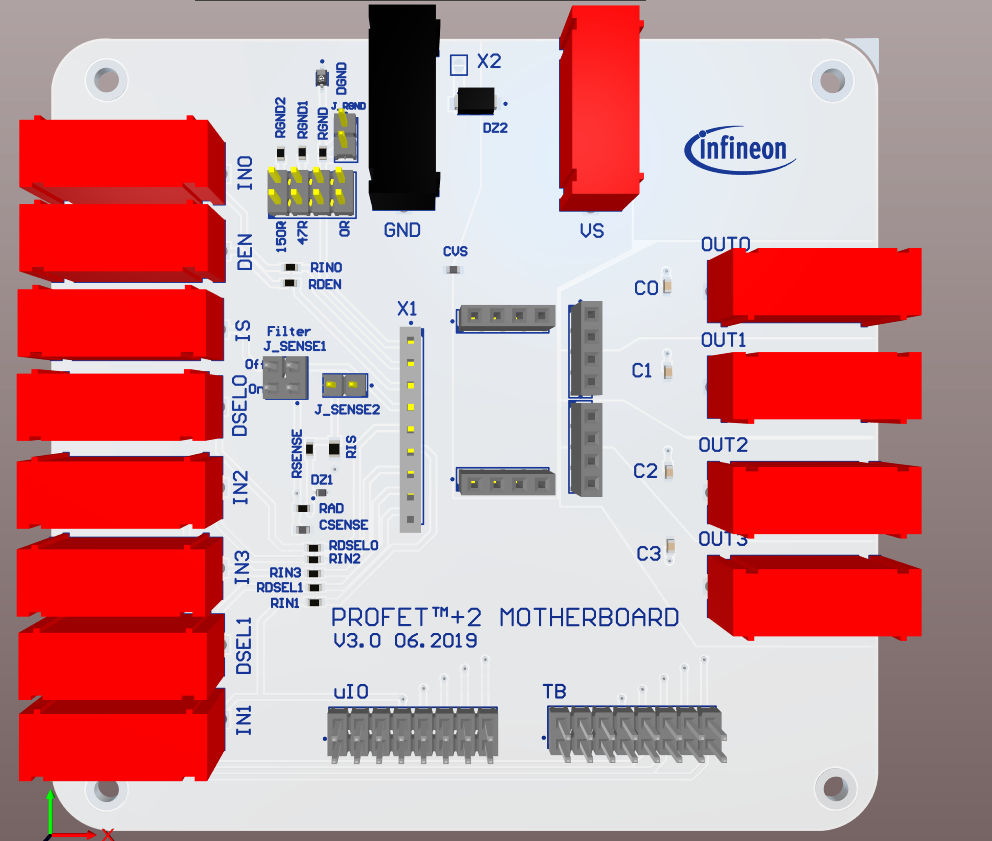

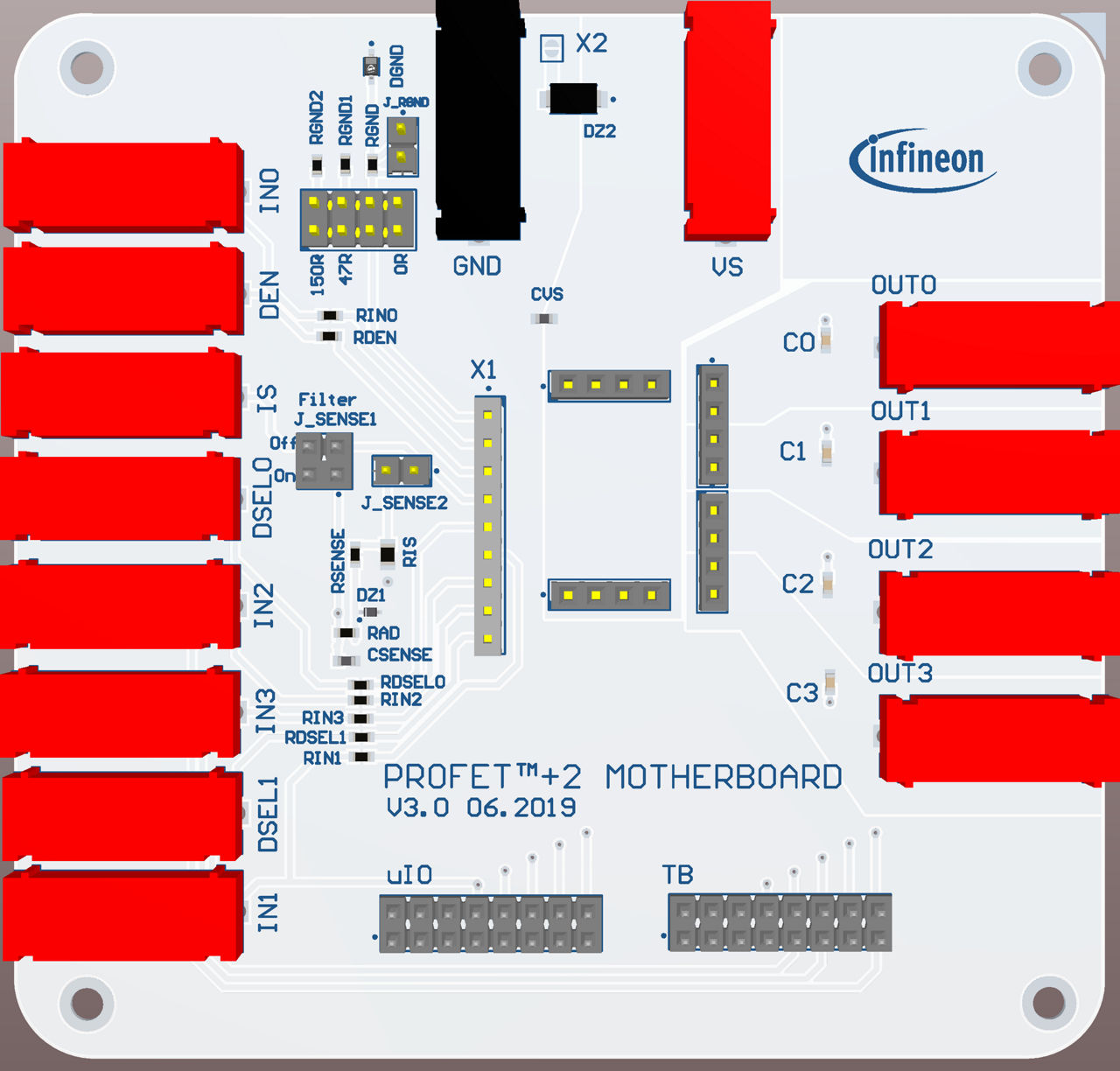

The motherboard is designed for PROFET™ +2 12V and PROFET™ Load Guard 12V devices, with compatibility for future devices. Banana connectors enable power line connections. This board offers a convenient pick and place solution for lab evaluations, capable of driving automotive loads when combined with the daughterboard.

Features

  • Operating V R 3.1-28V with 3.3.V and 5V
  • Protection:current tripping, overvoltage
  • Diagnosis: load current sense output
  • Forced continuous conduction mode
  • Miniaturization / Shrink of the PCB Area

Benefits

  • 50% Lower Internal Operating Current
  • Current sense accuracy ≤ 5% @ load
  • Smaller package size for area savings
  • Ultra-low leakage ≤ 0.5 μA @ 85°C

Applications
