MOS_GENERIC_POW_BOARD

OptiMOS™ -6 40 V SSO8 MOSFET, MOTIX™ MCU (SoC) TLE987x
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

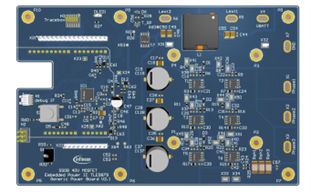

MOS_GENERIC_POW_BOARD
MOS_GENERIC_POW_BOARD
ea.
User Manual

Product details

  • Board Type
    Reference Board
  • Family
    SSO8 with OptiMOS™ 6, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Pout max
    400 W
  • Qualification
    Automotive (some passive components do not have AECQ qualification. Details in the user manual)
  • Supply Voltage
    7 V to 18 V
  • Target Application
    Automotive fan and pump, 400 W BLDC motor for 12V application, radiator fan, water pump
  • Topology
    3-phase full-bridge
Recommended
OPN
MOSGENERICPOWBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The Generic Power evaluation board enables an automotive inverter application for controlling BLDC motor-driven fans or pumps. It utilizes the MOTIX™ TLE9879QXA40 32-bit motor control SoC with integrated MOSFET drivers and OptiMOS™ -6 leadless MOSFETs. The design can drive up to 400W loads supplied by a 12V battery. The user manual provides design details, schematics, and measurement reports.
