LITE DCDC SBC BOARD

User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

LITE DCDC SBC BOARD
LITE DCDC SBC BOARD
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    Lite SBC, OPTIREG™ SBC
  • Input Type
    DC
  • Output Voltage
    4.9 V to 5.1 V
  • Qualification
    Automotive
  • Sub Application
    In-Cabin Wireless Charger, Smart Power Distribution modules, Light Control Unit (LCU) for front and rear, Water pump, Wiper ECU, HVAC ECU and Control panel, Exhaust module and NOx sensor, Transfer Case, Auto Transmission
  • Supply Voltage
    5.5 V to 28 V
  • Target Application
    Automotive
  • Topology
    DC-DC converter
Recommended
OPN
LITEDCDCSBCBOARDTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

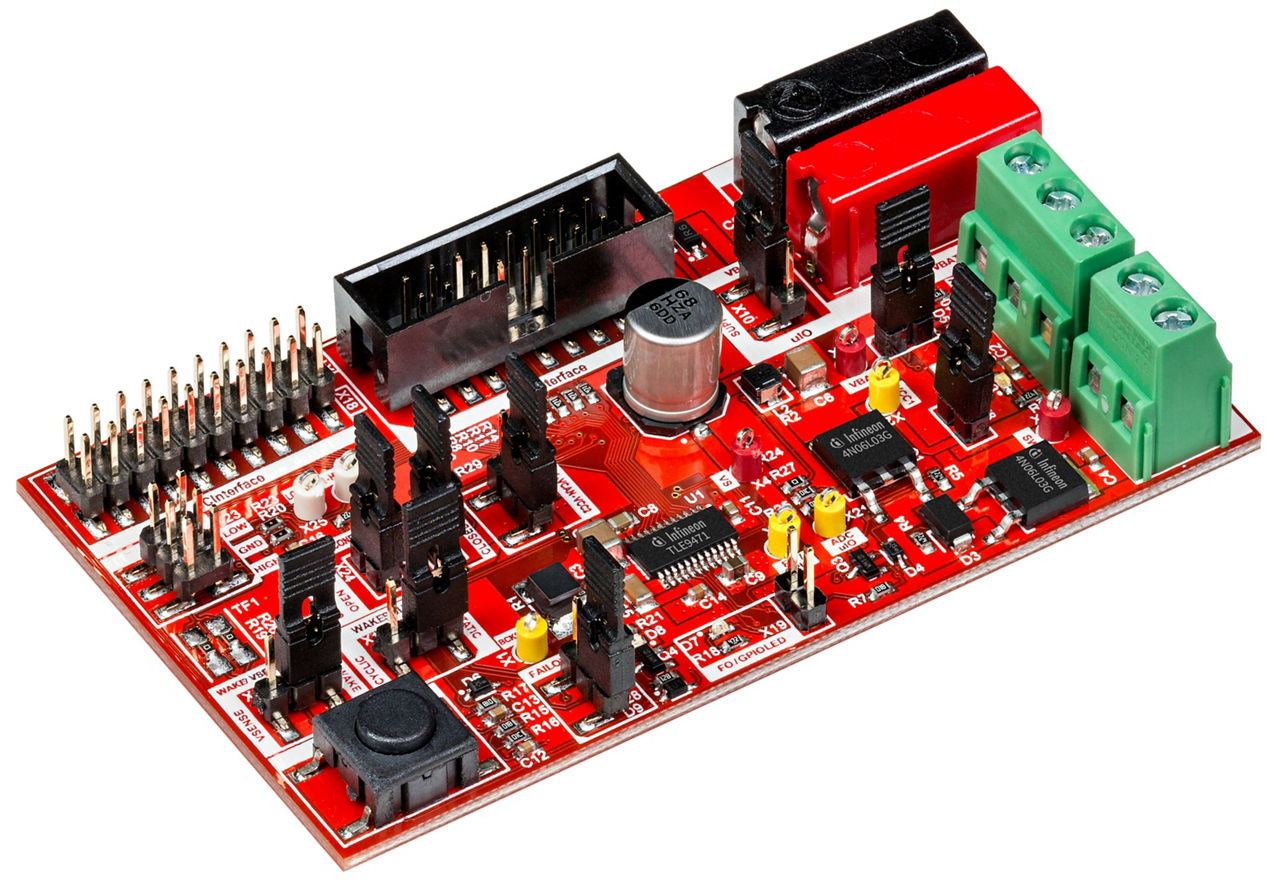

This demo board enables device evaluation of the Lite SBC product family and accelerates the design-in phase. It is populated with the representative product families’ superset component TLE9471-3ES. The evaluation board can be connected to the “UIO STICK” (Power Easy Kit Lite) and controlled via USB using a powerful and intuitive Graphical User Interface (GUI) installed on your computer.
