on request
RoHS Compliant

KIT_XMC52_EVK

XMC™ 5000 Kit , Low-Cost, Arduino Compatible Evaluation Board
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_XMC52_EVK
KIT_XMC52_EVK
Data Sheet

Product details

  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Board
  • CapSense
    No
  • Core
    Arm® Cortex®-M4
  • Device
    XMC5200-F100K1088AA
  • External memory
    None
  • Family
    Microcontroller, XMC5000
  • Features
    N/A
  • GPIOs/Shield Compatibility
    Arduino form factor connectors
  • Hardware Compatibility
    N/A
  • Programmer/Debugger
    Onboard KitProg
  • Sensors
    N/A
  • Software Support
    ModusToolbox
  • WiFi Standard
    N/A
OPN
KITXMC52EVKTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

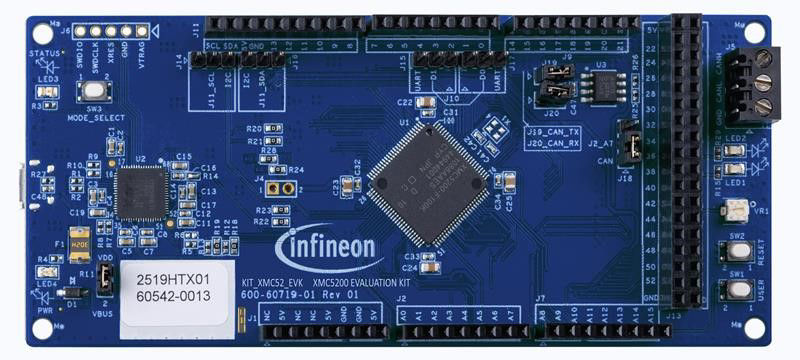

The KIT_XMC52_EVK is a cost-optimized evaluation kit featuring a device from the XMC5200 series, offered in 100-QFP package. Engineered in an Arduino-compatible form factor, it supports seamless connectivity with standard Arduino shields, enabling rapid prototyping and hardware expansion. Comprehensive documentation, provides detailed guidance on board setup, configuration, and operation.

Features

  • XMC5200-F100K1088AA MCU
  • On-board programming/debug via KitProg3
  • High-speed CAN transceiver support
  • USB-to-UART bridge for connectivity
  • User switch, LED and potentiometer
  • Arduino-style headers for shields
  • Micro USB for power/programming/data
  • 3-pin terminal block for CAN interface
  • 2 LEDs, 1 button, 1 potentiometer

Benefits

  • Ready to go solution
  • Comprehensive connectivity options
  • Integrated eebugging interface
  • User-friendly development environment

Bill of Material

Documents

Documents

Design resources

Diagrams

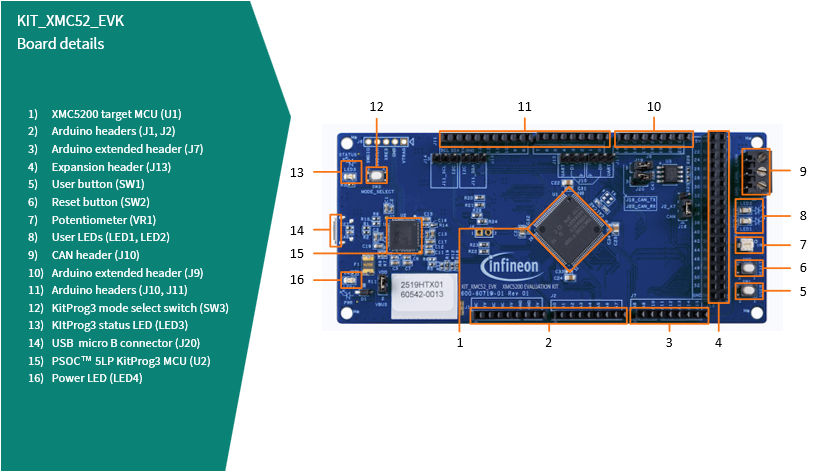

KIT XMC52 EVK
