Active and preferred
RoHS Compliant

KIT_XMC1X_AK_MOTOR_001

XMC1000 Motor Control Application Kit
Getting Started
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_XMC1X_AK_MOTOR_001
KIT_XMC1X_AK_MOTOR_001
ea.
Getting Started

Product details

  • Bluetooth Standard
    N/A
  • Board Type
    Evaluation Kit
  • CapSense
    No
  • Core
    ARM Cortex-M0
  • External memory
    None
  • Family
    XMC1300 Industrial Microcontroller
  • Features
    Hall & Encoder interface
  • GPIOs/Shield Compatibility
    None
  • Product Name
    XMC1000 Motor Control Application Kit
  • Programmer/Debugger
    Onboard XMC4200 Debug IC
  • Sensors
    None
  • Software Support
    ModusToolbox
  • Target Application
    Motor Control & Drives
  • WiFi Standard
    N/A
Recommended
OPN
KITXMC1XAKMOTOR001TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

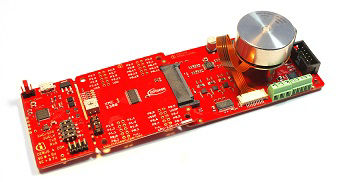

XMC1000 Motor Control Application KitOrder Number: KIT_XMC1x_AK_Motor_001Recommended resale price: € 125.- or please contact your local distributor: www.infineon.com/distribution

Features

  • MCU board with XMC1300 and detachable SEGGER J-Link debug interface
  • Motor Board: 12 – 24V, up to 3A, On board 3-phase motor (24V, 15W) with hall sensors, Optional encoder interface
  • Power supply 24V, 1A
  • Supported control schemes
  • V/f open loop
  • Block or sinusoidal commutation with hall sensors or sensorless
  • FOC with hall sensors, encoder or sensorless
  • Tool chain
  • Fully supported by DAVE™
  • APPs available for various control schemes

Applications
