NEW
Active and preferred
RoHS Compliant

KIT_TC4D9XP_COM_TRB_S

NEW
Powerful next-generation AURIX™ TC4x kit

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_TC4D9XP_COM_TRB_S
KIT_TC4D9XP_COM_TRB_S

Product details

  • Family
    Microcontroller
  • Input Type
    DC
  • Qualification
    Automotive
  • Target Application
    Automotive
Recommended
OPN
KITTC4D9XPCOMTRBSTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

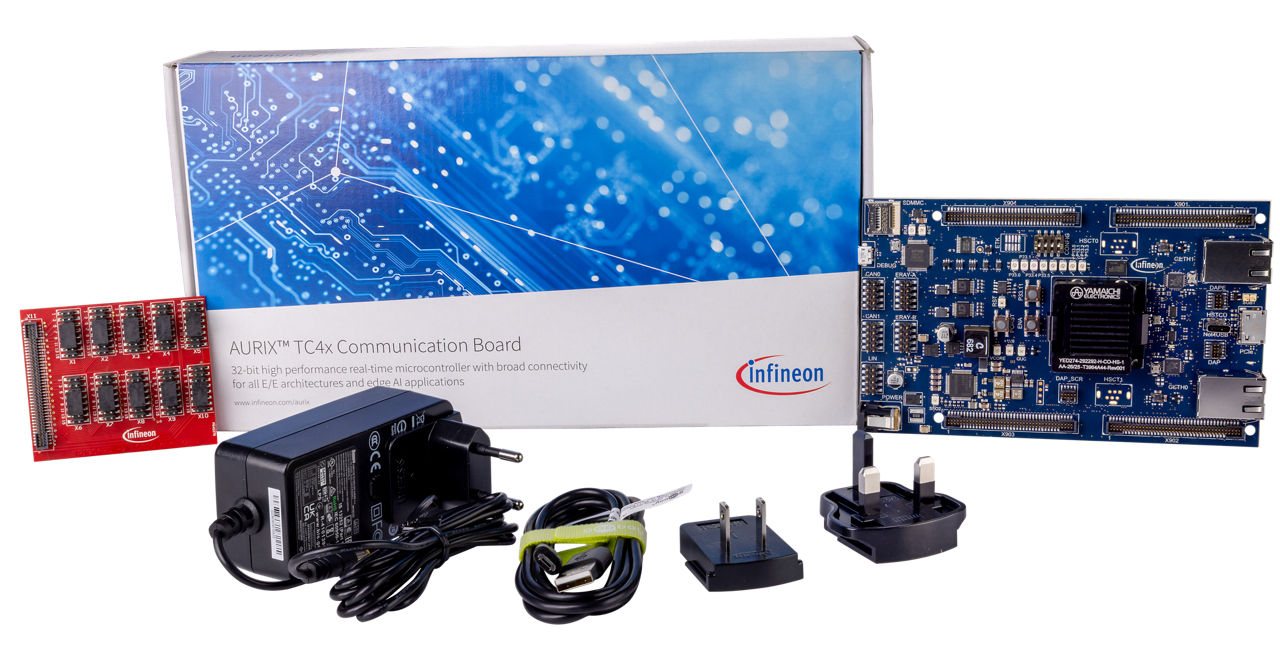

Explore KIT_TC4D9XP_COM_TRB_S, your fast path to the AURIX™ TC4x TriCore™ (TC4D9XP) for easy application development. Equipped with essential memories, rich peripherals, and on-chip debugging, it integrates smoothly with leading development tools to speed bring-up. Start developing TriCore™ applications effortlessly from day one.

Features

  • Soldered TriBoard assembly
  • Supporting BGA436 package
  • On-board MiniWiggler (DAP)
  • USB-to-UART bridge for console & logging
  • 10/100/1000/2500 Mbit/s Ethernet support
  • CAN-FD transceiver(s)
  • FlexRay™ transceivers
  • LIN transceivers
  • Semper Flash with HyperBus interface
  • Robust power delivery
  • optional ETK connector plus status LEDs

Benefits

  • Compatible with AURIX™ Development Studio (ADS)
  • Comprehensive interface coverage
  • Stable, proven hardware platform
  • Supports repeatable automated test scripts
  • Stable power and status LEDs
  • Provide instant feedback on system health
  • Robust Connectivity

Applications
