Active
RoHS Compliant

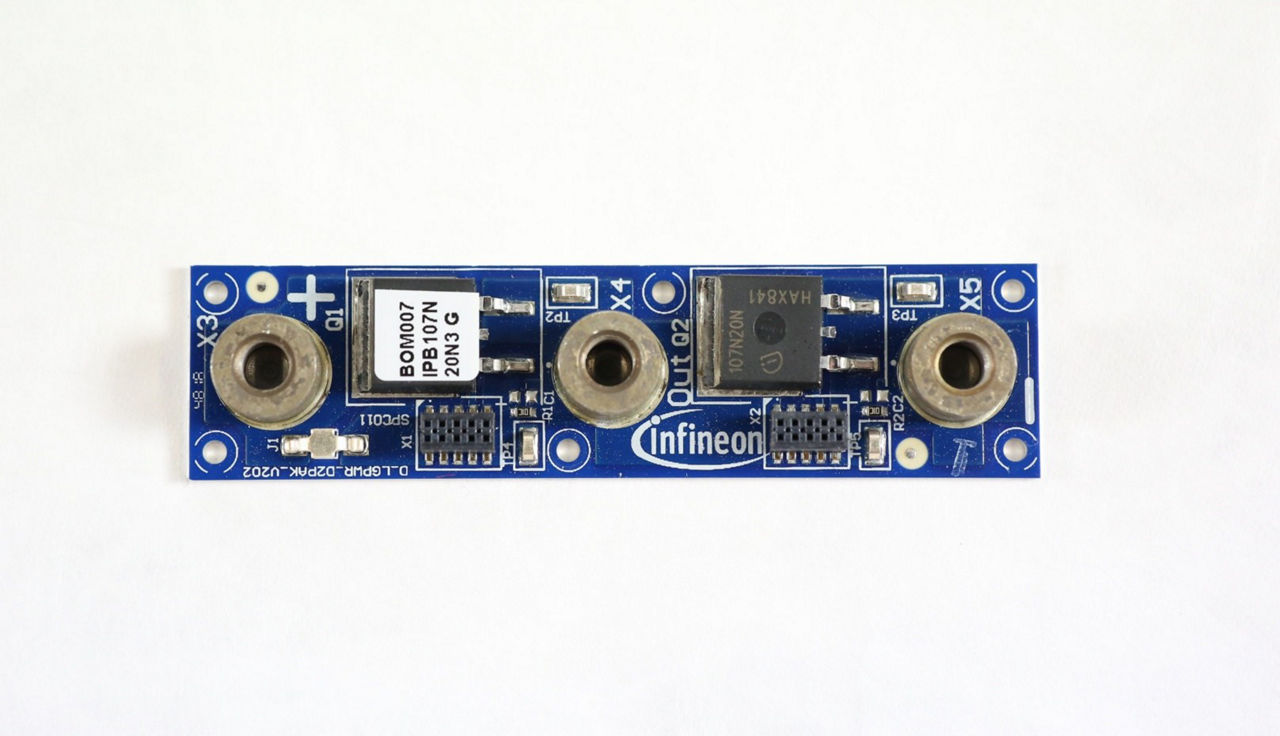

KIT_LGPWR_BOM007

Kit power board for low voltage drives scalable power demoboard
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_LGPWR_BOM007
KIT_LGPWR_BOM007
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Dimensions
    75mm x 19mm
  • Family
    OptiMOS™
  • Input Type
    DC
  • Output Current max
    88 A
  • Product Name
    KIT_LGPWR_BOM007
  • Qualification
    Industrial
  • Sub Application
    Motor drives and control
  • Supply Voltage
    144 V
  • Target Application
    E-Bikes & Small E-Vehicles
  • Topology
    Half Bridge, B6 Bridge, Full Bridge, Buck, Boost, DC-DC converter
Recommended
OPN
KITLGPWRBOM007TOBO1
Product Status active
Infineon Package L-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package L-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The OptiMOS™ 200 V MOSFET power board module in a D²PAK package forms an integral part of the LVD scalable power demo platform. As a single half-bridge, it enables effortless construction of any half-bridge power topology. Variations of power boards using Infineon’s OptiMOS™ in D²PAK, D²PAK-7, and TO-Leadless packages exhibit diverse power MOSFET performance attributes.

Features

  • IMS PCB for increased cooling
  • SMD power terminals with M5 thread
  • Onboard test point terminals

Applications
