KIT_LGPWR_BOM004

Kit power board for low voltage drives scalable power demoboard
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_LGPWR_BOM004
KIT_LGPWR_BOM004
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Configuration
    IPT007N06N
  • Dimensions
    75mm x 19mm
  • Family
    OptiMOS™
  • Input Type
    DC
  • Output Current max
    300 A
  • Product Name
    KIT_LGPWR_BOM004
  • Qualification
    Industrial
  • Sub Application
    Motor drives and control
  • Supply Voltage
    24 V
  • Target Application
    E-Bikes & Small E-Vehicles
  • Topology
    DC-DC converter, Boost, Buck, Full Bridge, B6 Bridge, Half Bridge
Recommended
OPN
KITLGPWRBOM004TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

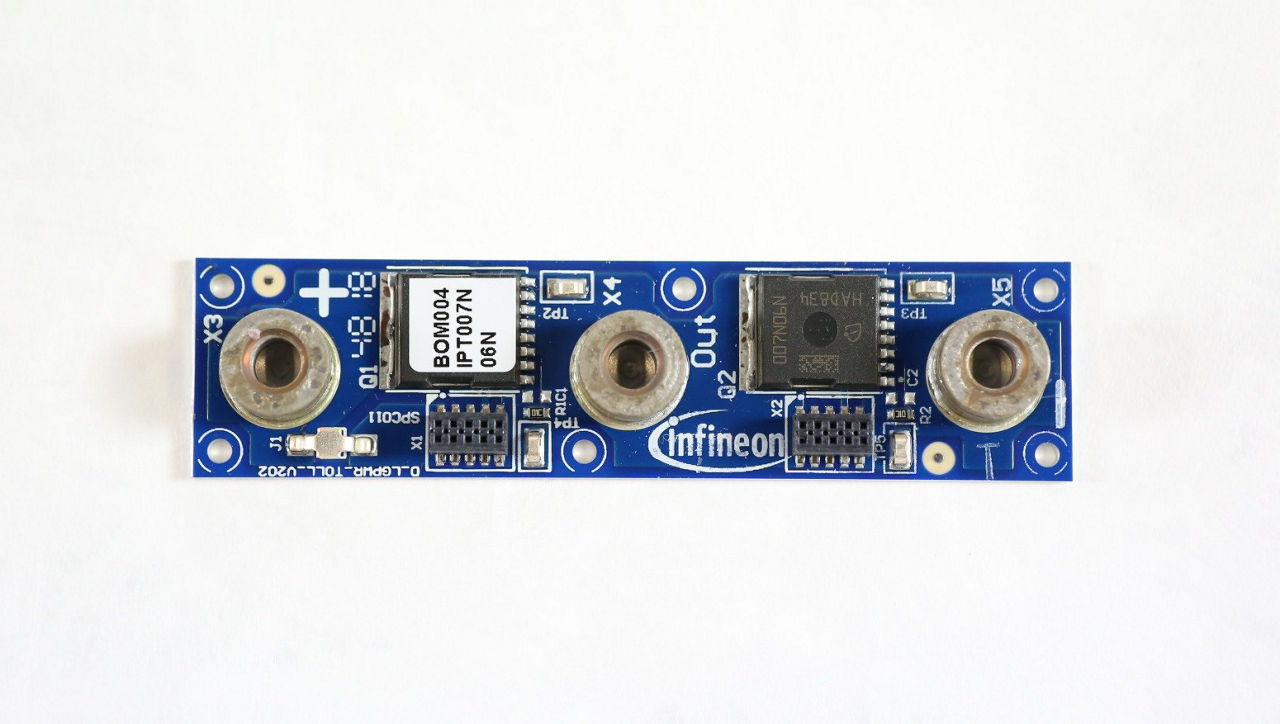

The OptiMOS™ 60 V MOSFET power board module is the essential component of the LVD scalable power demo platform. It's a half-bridge with power and gate drive interconnections, enabling easy construction of any half-bridge power topology. Different power boards using Infineon’s OptiMOS™ in D²PAK, D²PAK-7, and TO-Leadless packages exhibit various power MOSFET performances.

Features

  • IMS PCB for increased cooling
  • SMD power terminals with M5 thread
  • Onboard test point terminals
