KIT_LGPWR_BOM003

Kit power board for low voltage drives scalable power demoboard
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_LGPWR_BOM003
KIT_LGPWR_BOM003
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Configuration
    IPT012N08N5
  • Dimensions
    75mm x 19mm
  • Family
    OptiMOS™ 5
  • Input Type
    DC
  • Output Current max
    300 A
  • Product Name
    KIT_LGPWR_BOM003
  • Qualification
    Industrial
  • Sub Application
    Motor drives and control
  • Supply Voltage
    48 V
  • Target Application
    E-Bikes & Small E-Vehicles
  • Topology
    DC-DC converter, Boost, Buck, Full Bridge, B6 Bridge, Half Bridge
Recommended
OPN
KITLGPWRBOM003TOBO1
Product Status active
Infineon Package L-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package L-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

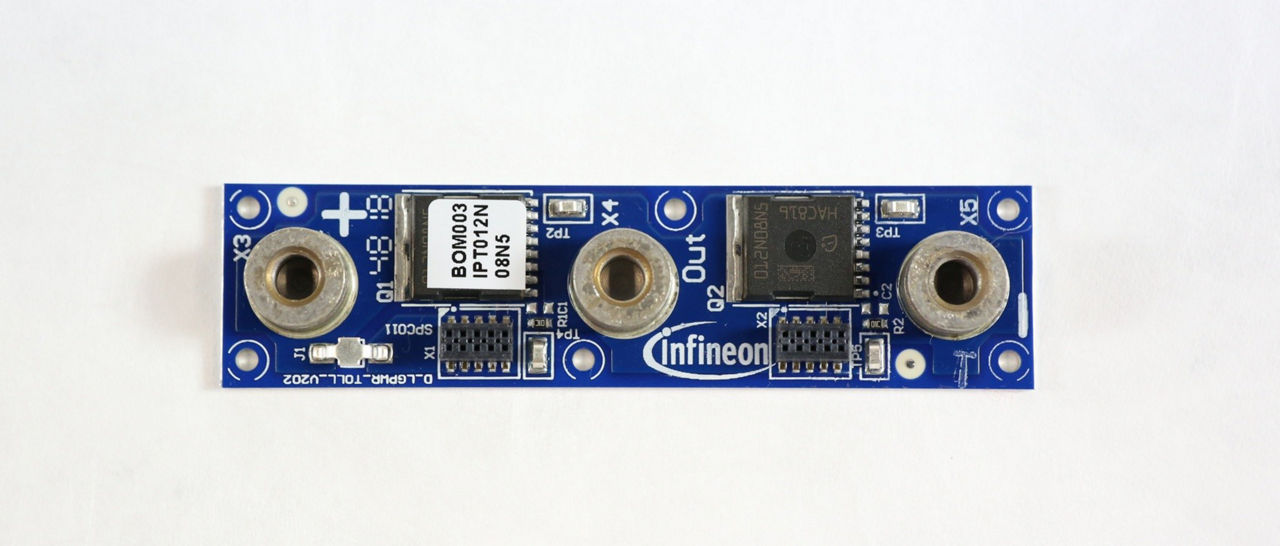

The OptiMOS™ 80 V MOSFET power board is the key module of the LVD scalable power demo platform. Serving as a half-bridge, it provides power and gate drive interconnections. Different power boards utilizing Infineon’s OptiMOS™ in D²PAK, D²PAK-7, and TO-Leadless packages offer varying power MOSFET performance.

Features

  • IMS PCB for increased cooling
  • SMD power terminals with M5 thread
  • Onboard test point terminals

Applications
