KIT_DRIVER_2EDS8265H

Evaluation kit for EiceDRIVER™ 2EDS8265H dual-channel reinforced isolated gate driver IC
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DRIVER_2EDS8265H
KIT_DRIVER_2EDS8265H
ea.

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    90 x 35 x 30mm
  • Family
    Gate Driver
  • Input Type
    DC
  • Interfaces
    no
  • Language
    SPICE
  • Product Category
    Evaluation Boards
  • Qualification
    Consumer
  • Target Application
    SMPS, Power Supplies, Industrial
  • Topology
    Low-side switch
Recommended
OPN
KITDRIVER2EDS8265HTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

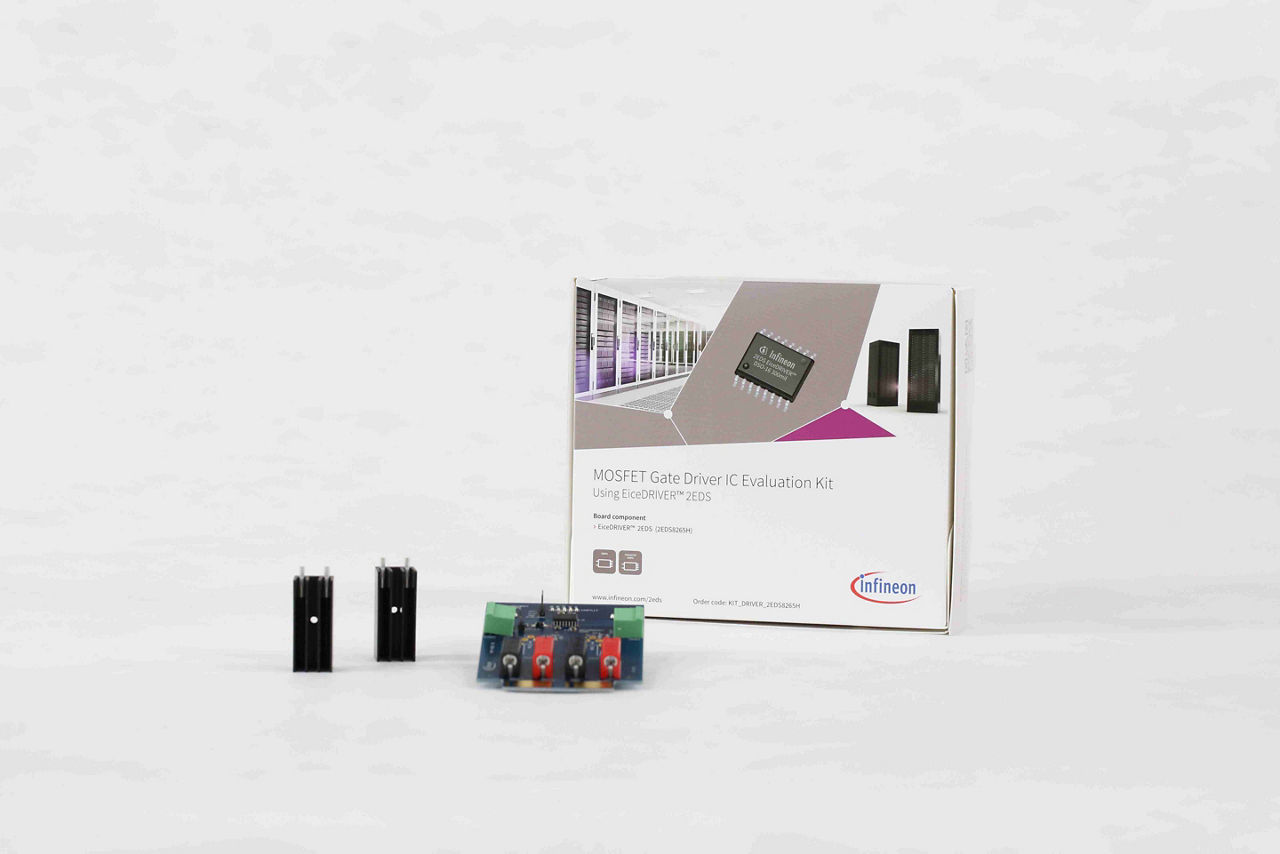

Infineon's 2EDS8265H kit is a platform for testing the dual-channel isolated driver IC. It includes integrated circuitry for step-by-step exploration and understanding its influence on load signals. It supports two MOSFETs, endorsing CoolMOS™ or OptiMOS™. It requires an external function generator and DC power. At zero-power, the load is an RC filter. Also, it allows MOSFET testing, power-up via connectors, and potential daughter card connection.

Features

  • Complete and easy-to-use solution platform integrating Infineon’s gate driver IC EiceDRIVER™ 2EDS8265H and CoolMOS™ SJ MOSFET or OptiMOS™ power MOSFETs
  • Provides the possibility to evaluate the influence of the gate load (Rg or Cgs) on the driving behavior of the 2EDS8265H
  • Provides the possibility to easily replace and test different power MOSFETs in TO-220 package

Benefits

  • Familiarize with Infineon’s EiceDRIVER™ 2EDS8265H features
