Active and preferred

KIT_DRIVER_1EDN7550B

Evaluation kit for EiceDRIVER™ 1EDN7550B single-channel low-side non-isolated gate driver IC with truly differential inputs (TDI)
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DRIVER_1EDN7550B
KIT_DRIVER_1EDN7550B
ea.

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    73 x 44 x 68mm
  • Family
    Gate Driver
  • Frequency
    100 kHz to 200 kHz
  • Input Type
    DC
  • Mounting
    THD
  • Product Name
    KIT_DRIVER_1EDN7550B
  • Qualification
    Consumer
  • Sub Application
    Adapter
  • Supply Voltage
    10 V to 20 V
  • Target Application
    SMPS, Power Supplies, Industrial
  • Topology
    Low-side switch
Recommended
OPN
KITDRIVER1EDN7550BTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

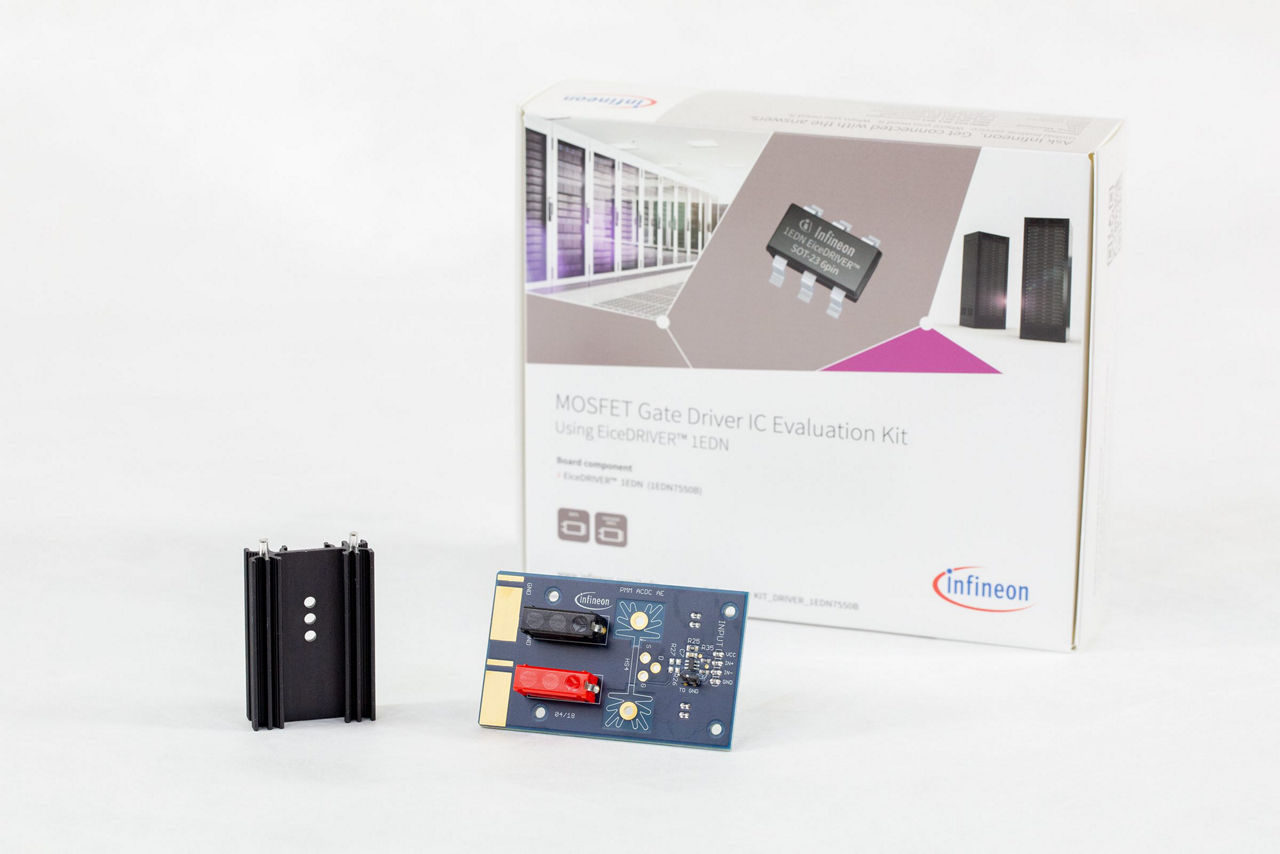

The evaluation kit provides a test platform for Infineon's EiceDRIVER™ 1EDN7550B gate driver IC in SOT-23 6pin package, with complete driving circuitry. It facilitates step-by-step discovery of the 1EDN7550B characteristics and evaluation of the surrounding driving circuitry's influence on the load signal. Driver is intended for a low-side MOSFET in TO-220 package, with options for selecting Infineon CoolMOS™ or OptiMOS™ power MOSFET solutions.

Features

  • Complete and easy-to-use solution platform integrating Infineon’s 1EDN7550B EiceDRIVER™ gate driver IC and a CoolMOS™ or OptiMOS™ power MOSFET
  • Possible to evaluate the influence of the gate load (Rg or Cgs) on the driving behavior of the 1EDN7550B
  • Possible to ealuate the robustness of the 1EDN7550B to DC offsets between the driver ground and the function generator ground
  • Easy to replace and test different power MOSFETs in TO-220 package

Applications
