Active and preferred

KIT_DRIVER_1EDN7511B

Evaluation kit for EiceDRIVER™ 1EDN7511B single-channel low-side gate driver IC
Additional Technical Information
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DRIVER_1EDN7511B
KIT_DRIVER_1EDN7511B
ea.
Additional Technical Information

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    90 x 35 x 30mm
  • Family
    Gate Driver
  • Input Type
    DC
  • Interfaces
    Pin header for driver input signals; Banana connectors for MOSFET connections
  • Mounting
    THD(TO-220 MOSFET)
  • Product Name
    KIT_DRIVER_1EDN7511B
  • Qualification
    Consumer
  • Sub Application
    Adapter
  • Supply Voltage
    4.5 V to 20 V
  • Target Application
    SMPS, Power Supplies, Industrial
  • Topology
    Low-side switch
Recommended
OPN
KITDRIVER1EDN7511BTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

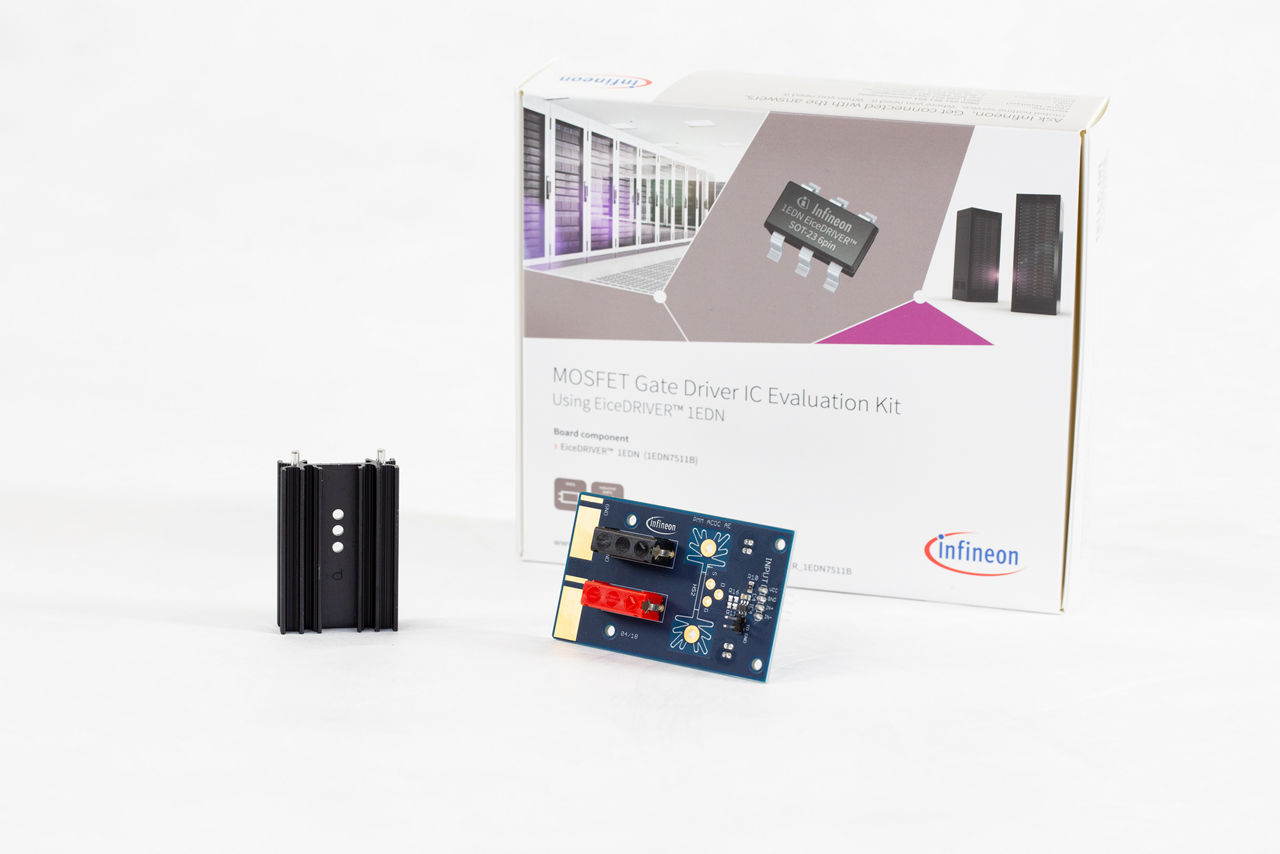

The evaluation kit offers a platform for testing Infineon's EiceDRIVER™ 1EDN7511B gate driver in SOT-23 6-pin package. It facilitates practical evaluation of the driver's characteristics and the driving circuitry's impact on the load signal. The kit includes a low-side MOSFET in TO-220 package, allowing selection of CoolMOS™ or OptiMOS™ power MOSFET solutions. It supports testing with zero-power applied to the MOSFETs.

Features

  • Complete and easy-to-use solution platform integrating Infineon’s gate driver IC EiceDRIVER™ 1EDN7511B and CoolMOS™ SJ MOSFET or OptiMOS™ power MOSFET
  • Possible to evaluate the influence of the gate load (Rg or Cgs) on the driving behavior of the 1EDN7511B
  • Easy to replace and test different power MOSFETs in TO-220 package

Benefits

  • Familiarize with the Infineon’s EiceDRIVER™ 1EDN7511B features
  • Understanding the influence of the gate load on the driving behavior

Applications
