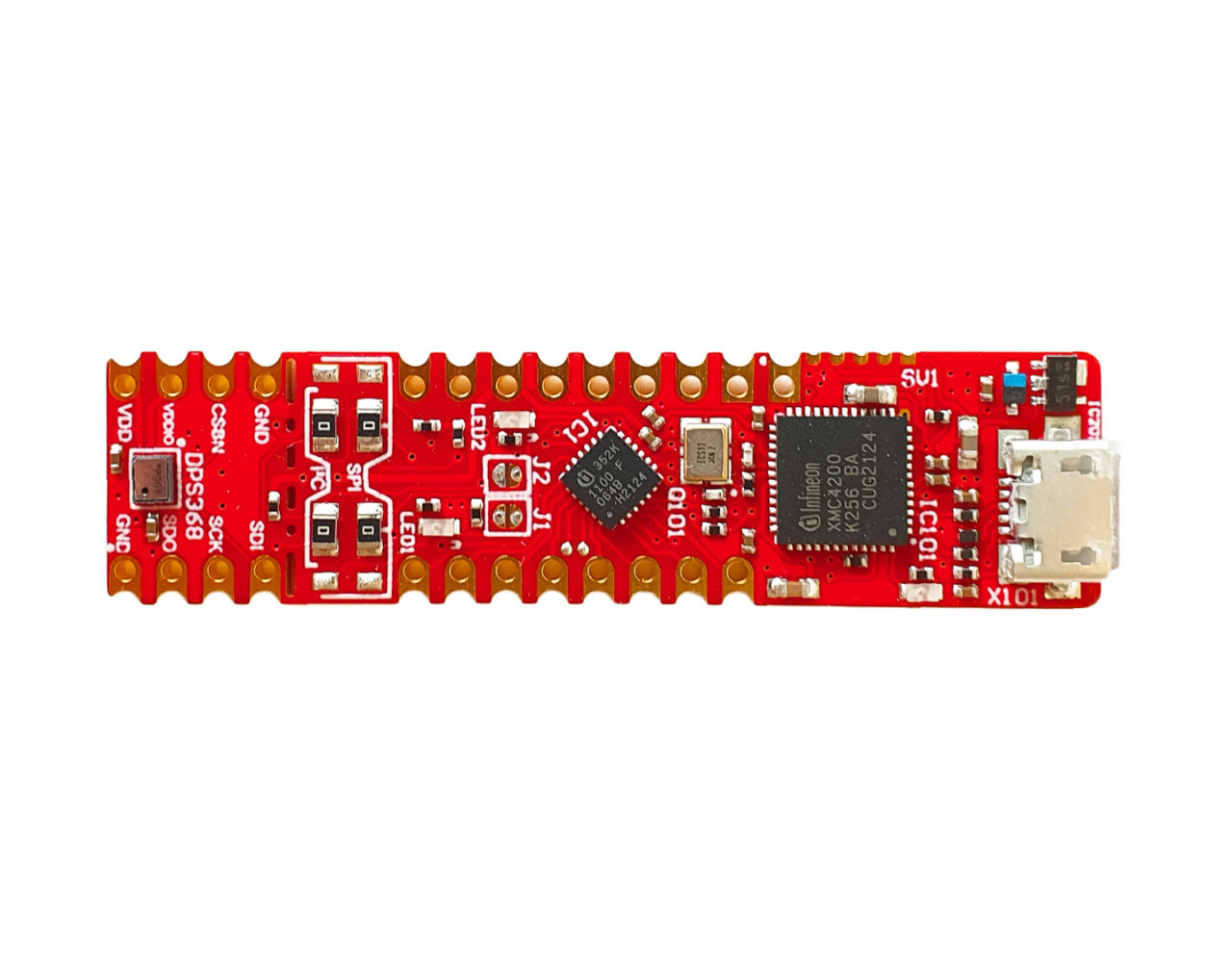

KIT_DPS368_2GO

DPS368 Kit2Go

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DPS368_2GO
KIT_DPS368_2GO

Product details

  • Product Category
    Pressure sensors for IoT
  • Product Name
    DPS368
Recommended
OPN
KITDPS3682GOTOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The DPS368 Kit2Go from Infineon is a powerful and user-friendly solution for barometric pressure sensing in IoT and embedded systems. It integrates a built-in XMC1100 microcontroller unit and an XMC4200 Debugger, enhancing versatility and convenience. Fully compatible with the Arduino IDE, it simplifies integration into existing or new projects. Example codes available on Infineon's Github repository enable easy customization.

Features

  • Supply voltage 5V USB
  • Micro USB Type AB Connector
  • 16-pin Shield2GO Interface
  • Two User LEDs and one Power LED
  • Integrated MCU and Debugger Unit
  • Operation range:
  • Pressure: 300–1200 hPa
  • Temperature: -40–85°C
  • Precision: ± 0.002 hPa (or ±0.02 m)
  • Rel. accuracy: ± 0.06 hPa (or ±0.5 m)
  • Abs. accuracy: ± 1 hPa (or ±8 m)
  • Pressure temperature sensitivity of 0.5Pa/K
  • Temperature accuracy: ± 0.5°C
  • Interface: I2C and SPI (both with optional interrupt)

Benefits

  • High precision measurements with low power consumption
  • Arduino IDE compatible – Check out our Infineon Github Repository
  • Easy integration into IoT and embedded systems projects
  • Super small and light design

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

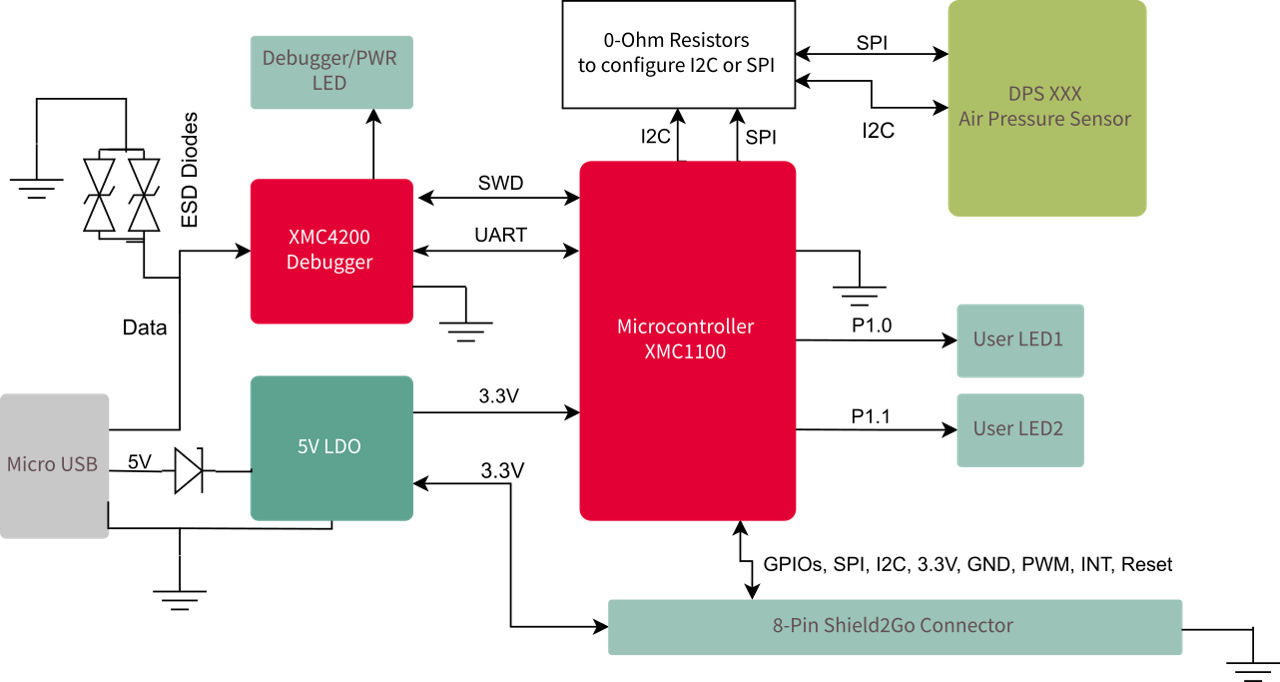

Blockdiagram-DPS310-DPS368-Kit2Go
Blockdiagram-DPS310-DPS368-Kit2Go
Blockdiagram-DPS310-DPS368-Kit2Go Blockdiagram-DPS310-DPS368-Kit2Go Blockdiagram-DPS310-DPS368-Kit2Go
×
