IRAUDAMP17

Reference design board – 100 W/4 Ohms x 2-channel class D audio power amplifier featuring IR4302
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRAUDAMP17
IRAUDAMP17
User Manual

Product details

  • Applications
    Audio
  • Board Type
    Evaluation Board
  • Input Type
    DC
  • Pout max
    100 W
  • Product Name
    Evaluation Board IRAUDAMP17
Recommended
OPN
IRAUDAMP17
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

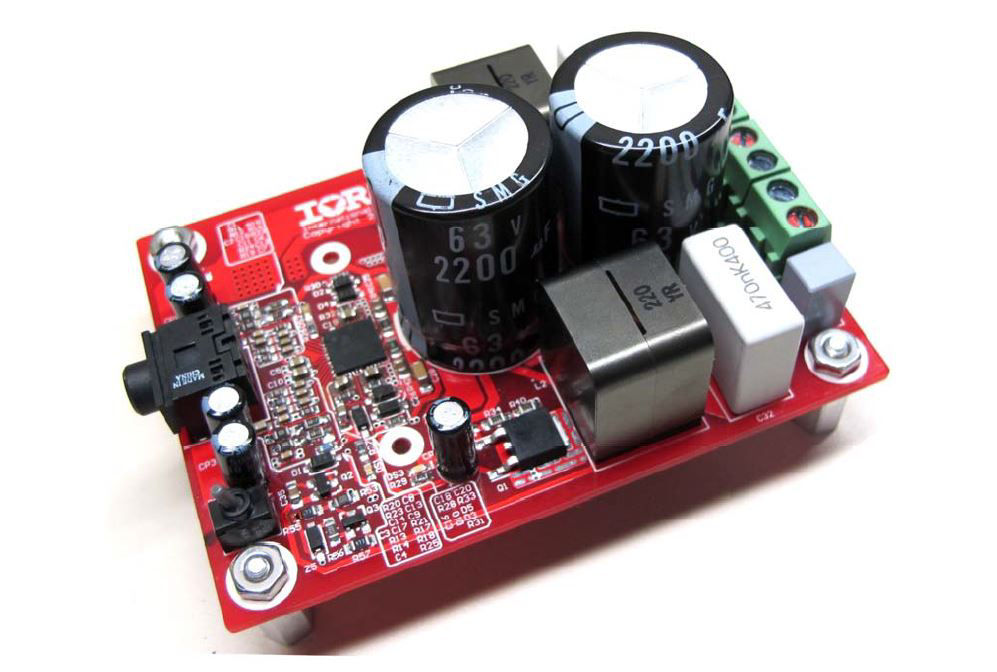

IRAUDAMP17 evaluation board is a 2-channel, 100 W/ch (4 Ω at +52 V), class D audio power amplifier for audio systems. It demonstrates how to use IR4302M with a single supply, implement protection circuits, and design an optimum PCB layout. The reference design contains all the required housekeeping power supplies for ease of use. The two-channel design is scalable, for power and number of channels.

Features

  • Reference design board
  • IR4302
  • Single power supply, 2x100 W

Benefits

  • 100 W x 2, (THD=10%, 1 kHz, 4 Ohms)
  • 0.008% THD+N @ 30 W, 4 Ohms
  • Residual noise 220 µV, AW
  • 96% efficiency @ 100 W, 4 Ohms
  • OCP, OVP, UVP and OTP
  • Self-oscillating HB topology
  • Featuring IR4302
