not for new design
RoHS Compliant

IRAUDAMP15

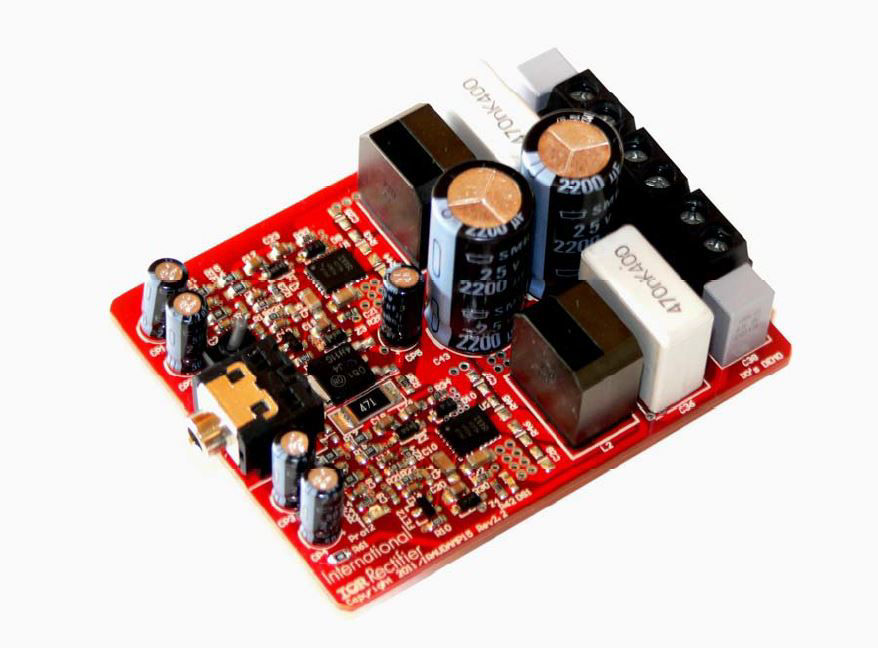

Reference design board – 35 W/4 Ohms x 2-channel class D audio power amplifier featuring IR4311
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRAUDAMP15
IRAUDAMP15
Data Sheet

Product details

  • Applications
    Audio
  • Board Type
    Evaluation Board
  • Input Type
    DC
  • Pout max
    35 W
  • Product Name
    Evaluation Board IRAUDAMP15
OPN
IRAUDAMP15
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Benefits

  • 35 W x 2 channels, (THD=10%, 1 kHz, 4 Ohms)
  • 02% THD+N distortion @ 5 W, 4 Ohms
  • Residual noise 250 µV, IHF-A weighted, AES-17 filter
  • 96% efficiency @ 35 W, 4 Ohms, class D stage
  • OCP, OVP, UVP and OTP
  • Self-oscillating half-bridge topology
  • Featuring IR4311 integrated class D IC
