EVALQRC-ICE2QR1765Z
EVALQRC-ICE2QR1765Z
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    CoolSET™
OPN
EVALQRCICE2QR1765ZTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

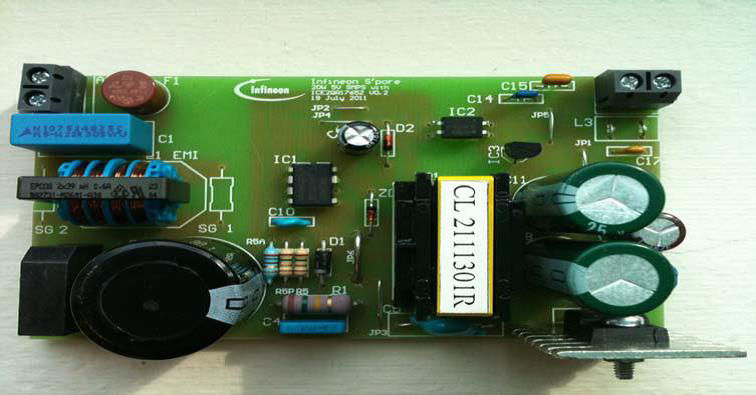

The ICE2QR1765Z board is a quasi-resonant flyback converter featuring CoolMOS™. It simplifies PCB design, maximizes efficiency, and mitigates diode recovery issues. Infineon's technology ensures efficient operation at low loads. It also includes adjustable protection mechanisms for enhanced safety. These features make it a cost-effective solution.

Features

  • 650V avalanche rugged CoolMOS™ with built in depletion startup cell
  • Quasi-resonant operation
  • Digital frequency reduction with decreasing load
  • Cycle-by-cycle peak current limitation with foldback point correction
  • Built-in digital soft-start
  • Direct current sensing with internal Leading Edge Blanking Time
  • VCC under voltage protection: IC stop operation, recover with softstart
  • VCC over voltage protection: IC stop operation, recover with softstart
  • Openloop/Overload protection: Auto Restart
  • Output overvoltage protection: Latch-off with adjustable threshold
  • Short-winding protection: Latch-off
  • Over temperature protection: Autorestart
