EVALKIT_TLE92102QVW

NEW
Easy evaluation kit to measure and evaluate the MOTIX™ multi MOSFET gate driver IC TLE92102QVW

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVALKIT_TLE92102QVW
EVALKIT_TLE92102QVW

Product details

  • Classification
    ISO26262-compliant
  • Family
    MOTIX™ multi MOSFET gate driver ICs
  • Gate current max
    100 mA
  • Qualification
    Automotive
  • Supply Voltage absolute max ratings max
    40 V
  • Supply Voltage
    7 V to 36 V
  • Temperature
    -40 °C to 175 °C
Recommended
OPN
EVALKITTLE92102QVWTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

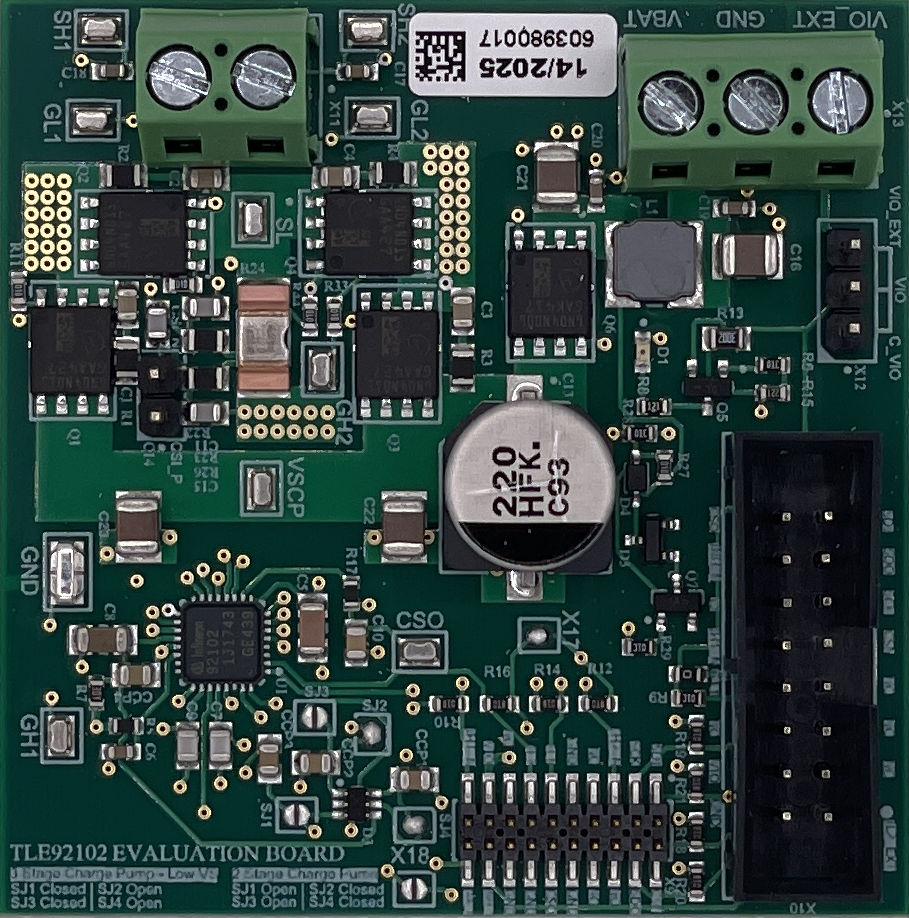

The MOTIX TLE92102 evaluation board is a user-friendly tool for Infineon's multi-MOSFET driver IC, featuring SPI control, accessible pins, and motor control capabilities. It allows evaluation of the IC's features and operation with up to two motors. Easy evaluation with uIO-stick. Is the board available for purchase by public customers, allowing the ‘buy online’ button to be displayed?: yes

Features

  • TLE92102QVW multi MOSFET driver
  • Control up to 2 DC motors independently
  • SPI register access
  • Motor spin function

Benefits

  • TLE92102QVW multi MOSFET driver
  • Reduced engineering efforts

Applications
