EVAL_XDPP1140_DB

NEW
Evaluation board for Infineon DC/DC digital IC controllers XDPP1140
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_XDPP1140_DB
EVAL_XDPP1140_DB
User Manual

Product details

  • Board Type
    Evaluation Board
  • Configuration
    XDPP1140-100B
  • Dimensions
    71.12 mm x 83.82 mm x 24.12 mm
  • Family
    DC-DC Converter
  • Input Type
    DC
  • Mounting
    Standoffs
  • Qualification
    Industrial
  • Sub Application
    Industrial
  • Supply Voltage
    3 V to 3.6 V
  • Target Application
    Server, data center, SMPS, Telecom, Data Center, Server, IBC modules
  • Topology
    DC-DC converter
Recommended
OPN
EVALXDPP1140DBTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

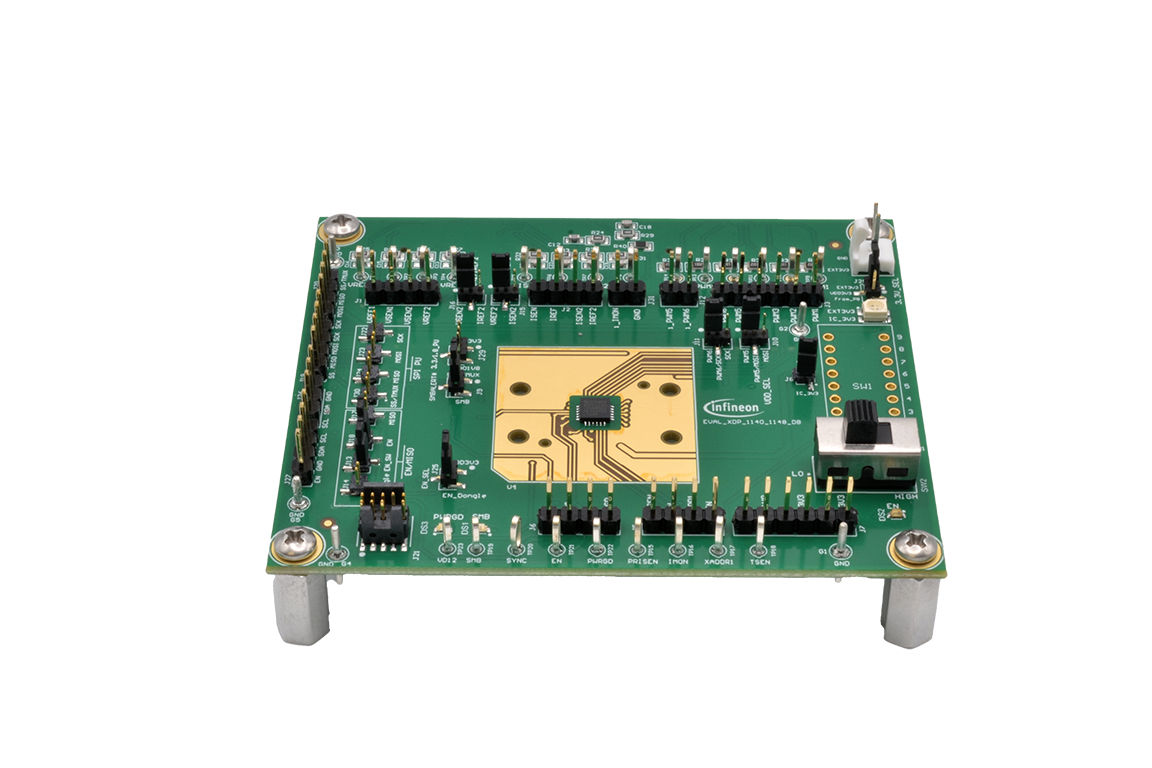

This evaluation board enables comprehensive testing of XDPP1140-100B digital controller. Featuring I2C, SPI, and SWD debug interfaces with accessible test points for signal monitoring. It functions independently for firmware development and testing or integrates with power boards such as EVAL_LLC_XDPP1148 used for LLC converter regulation. Configuration and monitoring require USB007A/B dongle for XDPGUI interface.

Features

  • Digital controller for DC/DC converter
  • Supports XDPP1140 evaluation
  • Configurable for multi mode/application
  • Dedicated I2C & PMBus communication port
  • SWD connector for firmware debugging
  • 1.8V LDO onboard
  • Highspeed mezzanine connectors
  • Supports Infineon REF/EVAL power board
  • Ease of use with LED indicators
