EVAL_TLX5572_WIRESEN

NEW
Evaluation board for XENSIV™ TLx5572 current sensor in single-wire current sensing applications with 5 V supply
User manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TLX5572_WIRESEN
EVAL_TLX5572_WIRESEN
User manual


Product details

  • Family
    Current Sensors
  • Supply Voltage
    5 V
  • Target Application
    Current Sensors

Recommended
OPN
EVALTLX5572WIRESENTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

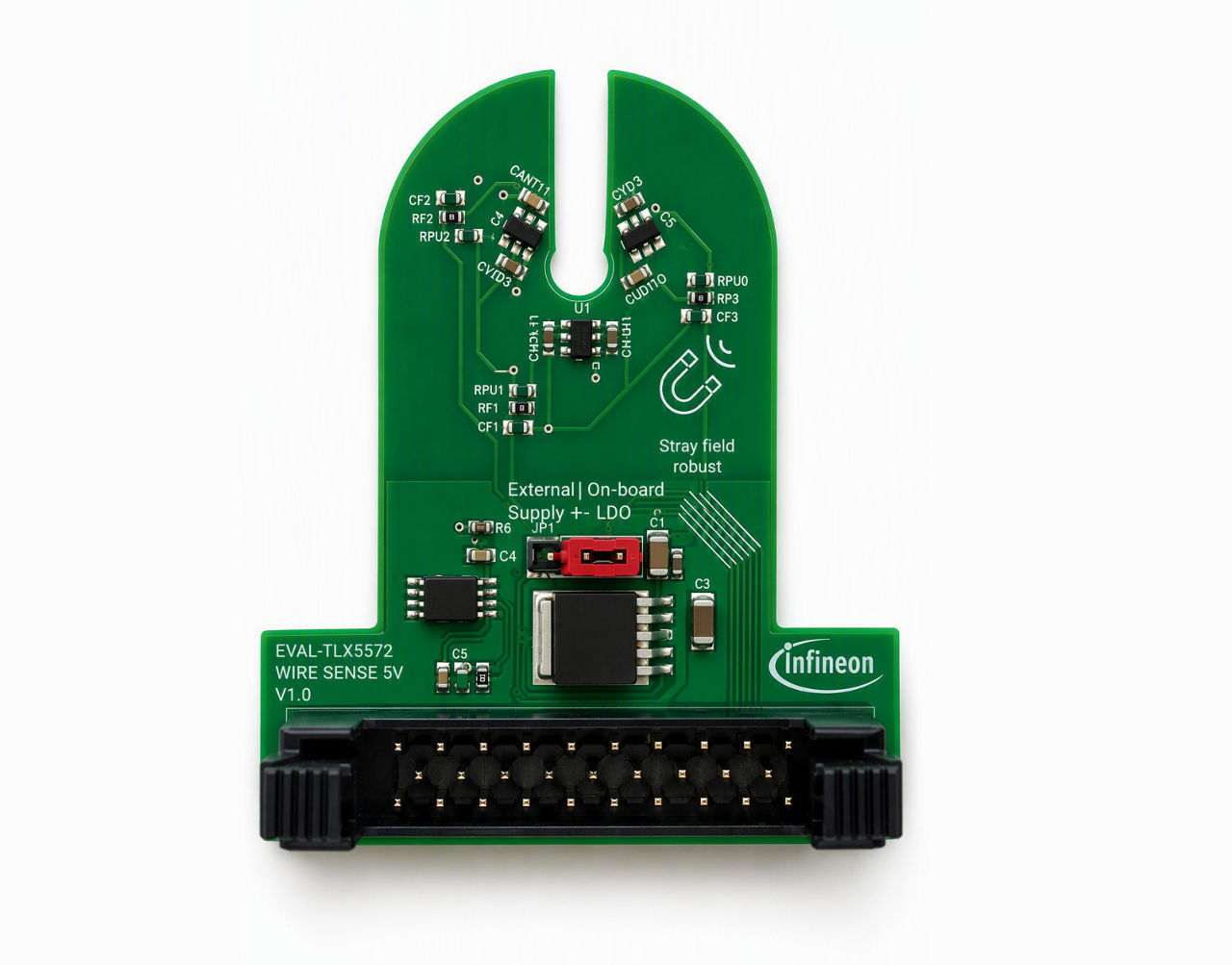

The XENSIV™ TLx5572 current sensor evaluation board is a compact platform for evaluating the XENSIV™ TLx5572 sensor family. Its optimized PCB layout demonstrates accurate single-wire current sensing using three sensors to measure current in an external conductor. Designed for 5 V operation, the board enables rapid evaluation of sensor performance and current measurement concepts.

Features

  • Single-wire current measurement
  • High-accuracy current sensing
  • Current clamp replacement
  • Fully isolated current measurement
  • 5 V supply voltage
  • Ultra-low-noise analog output
  • High bandwidth (>2 MHz)
  • No parasitic resistance or inductance
  • Fast response time (140 ns)

Benefits

  • Better system cost vs. shunt + OpAmp
  • Enables compact system designs
  • Low system heat loss
  • Ideal for GaN and SiC applications

Applications
