EVAL_TLE9186QVW

NEW

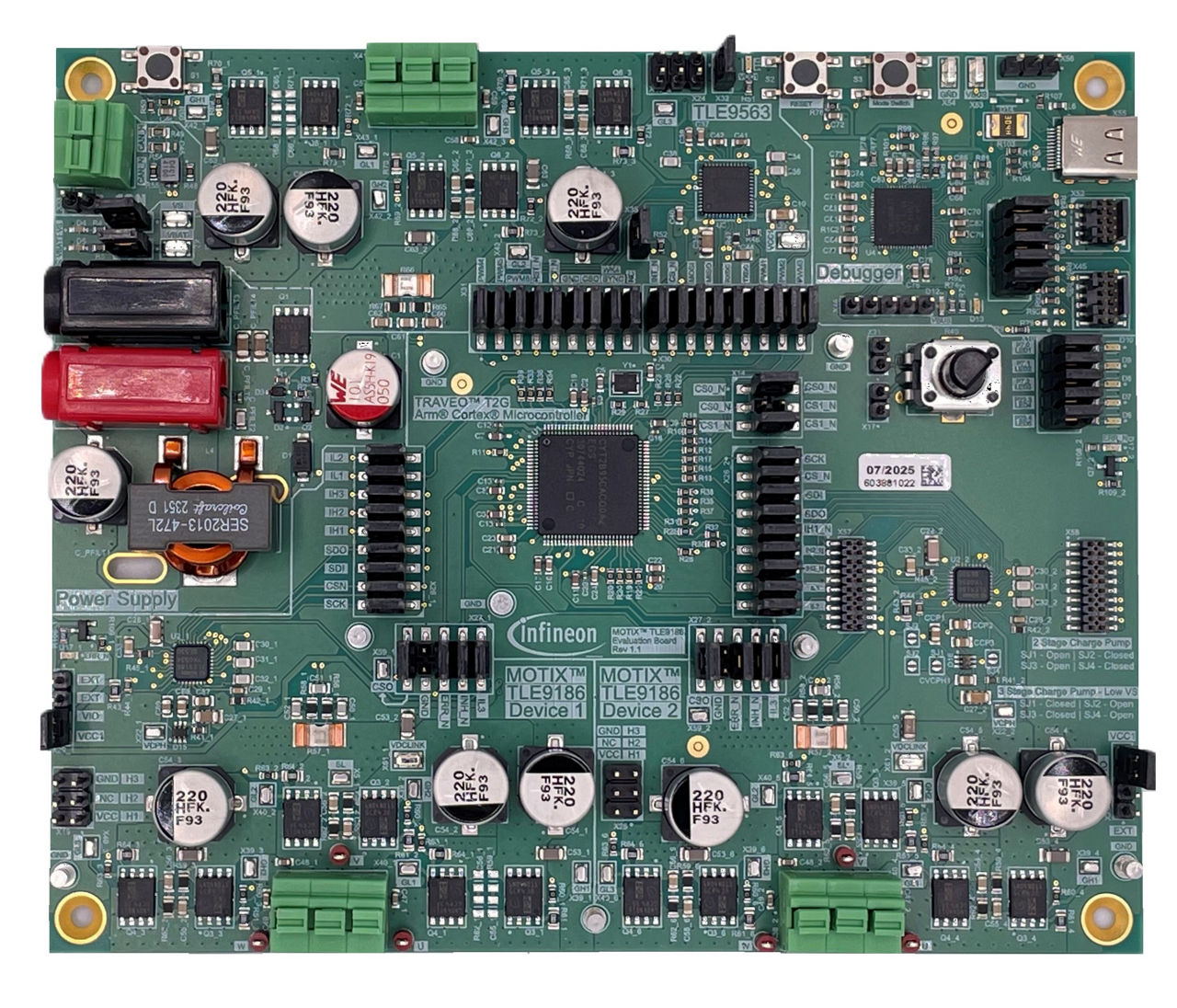

The MOTIX ™ TLE9186QVW evaluation board enables easy evaluation of Infineon’s ISO 26262-compliant (ASIL B) TLE9186QVW gate driver IC for 12 V BLDC motors.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TLE9186QVW
EVAL_TLE9186QVW

Product details

  • Family
    MOTIX™ gate driver ICs for BLDC motors
  • Input Type
    DC
  • Qualification
    Automotive
  • Topology
    3-phase inverter
OPN
EVALTLE9186QVWTOBO1
Product Status on request
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The MOTIX ™ TLE9186QVW evaluation board combines Infineon's TRAVEO™ CYT2B7 microcontroller with the MOTIX™ SBC TLE9563 and the MOTIX™ TLE9186QVW 3-phase gate driver  IC. All pins of the TLE9186QVW are accessible directly and most of the pins through pin headers. A comprehensive ecosystem, including software (device driver) and a configuration wizard, streamlines the evaluation of the device and validation of advanced motor control applications.

Features

  • MOTIX™ TLE9186QVW gate driver IC
  • TRAVEO™ CYT2B7 microcontroller
  • MOTIX™ SBC TLE9563
  • Designed for 3-phase BLDC motors
  • B6 bridge for direct motor connection
  • Hall sensor connector
  • Test points for easy measurements
  • Universal serial bus (USB) port
  • On-board debugger
  • Graphical user interface (GUI)

Benefits

  • Easy evaluation of TLE9186QVW features
  • Complete package: MOTIX™ HW, SW & tool

Applications

Bill of Material

Documents

Documents

Design resources

Diagrams

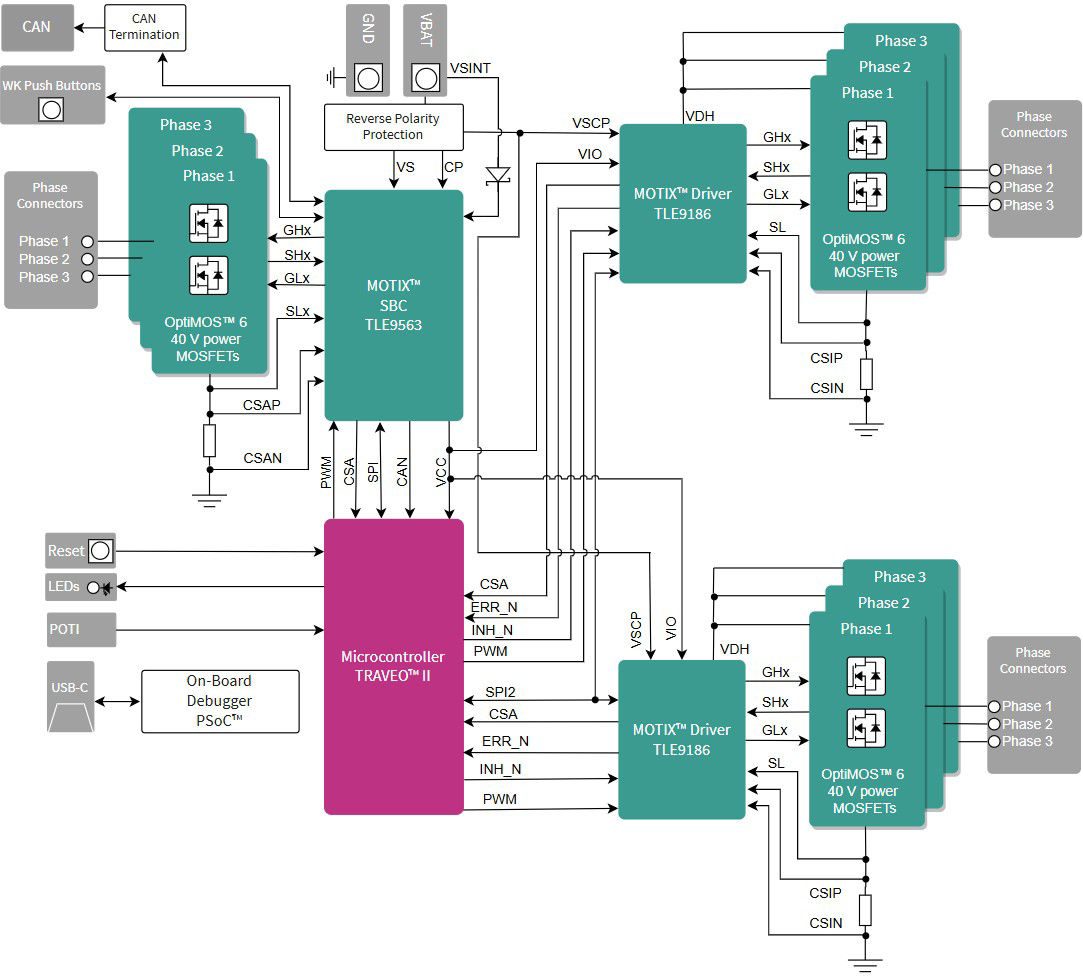

TLE9186_Evaluation_Board_Diagram
TLE9186_Evaluation_Board_Diagram
TLE9186_Evaluation_Board_Diagram TLE9186_Evaluation_Board_Diagram TLE9186_Evaluation_Board_Diagram
×
