EVAL_TDA38740_1.2VOUT

Evaluation demoboard 1.2 Vout for IPOL single-voltage regulator TDA38740
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_TDA38740_1.2VOUT
EVAL_TDA38740_1.2VOUT
User Manual

Product details

  • Family
    OptiMOS™ IPOL
  • Frequency
    1000 kHz
  • Input Type
    DC
  • Input Voltage
    12 V
  • Iout
    20 A
  • Output Voltage
    1.2 V
  • Pout
    100 W
  • Target Application
    Telecom
  • Topology
    Buck
  • Type
    DC
Recommended
OPN
EVALTDA3874012VOUTTOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

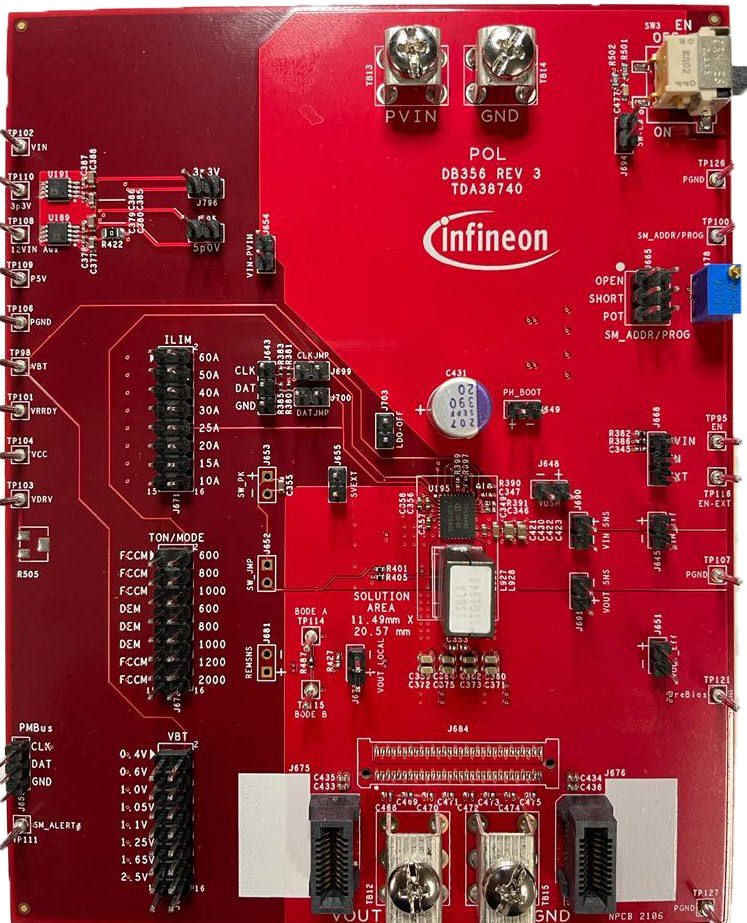

The EVAL_TDA38740_1.2VOUT enables full configuration of OptiMOS™ IPOL single-voltage synchronous buck regulator TDA38740 using the PMBus and/or using pin-strapped resistors. A USB dongle is used to establish communication between the IC and the PC via the 3-pin on-board header.Infineon's XDP™ Designer GUI is used to interface and program the TDA38740 IC.
