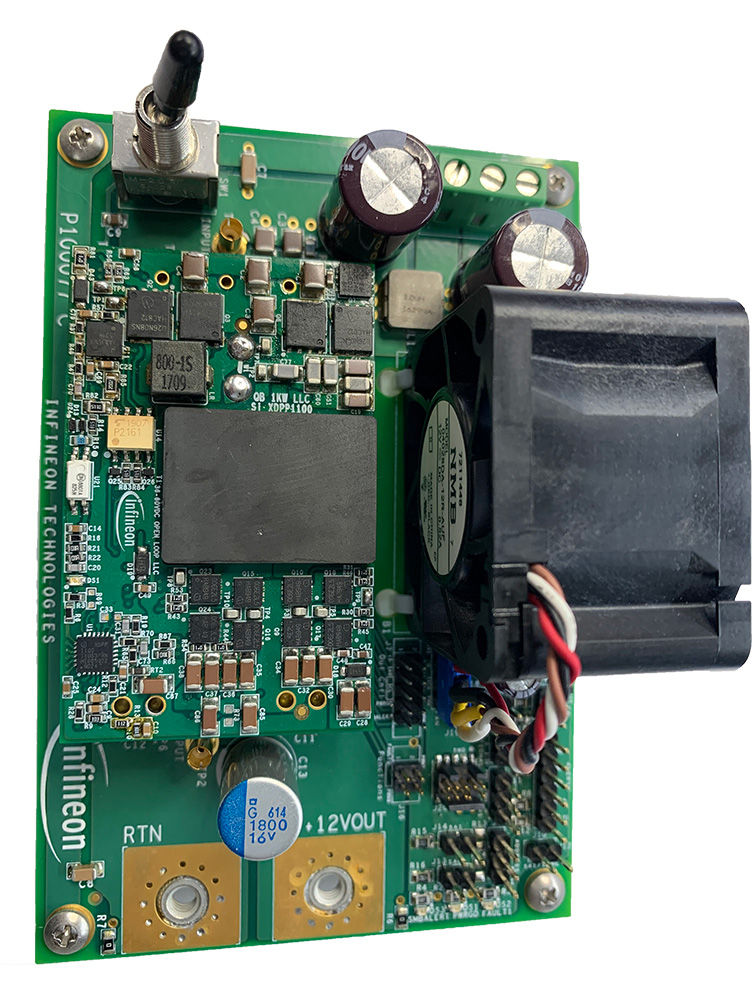

EVAL_QB_TEST_FIX_01

Evaluation board XDPP1100 quarter brick and eighth brick converter test fixture
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_QB_TEST_FIX_01
EVAL_QB_TEST_FIX_01
User Manual

Product details

  • Frequency
    250 kHz
  • Input Type
    DC
  • Output Current
    50 A
  • Output Voltage
    12 V
  • Pout
    840 W
  • Product Name
    EVAL_QB_TEST_FIX_01
  • Supply Voltage
    48 V
  • Target Application
    SMPS, Telecom, Power Supplies
  • Topology
    Isolated
Recommended
OPN
EVALQBTESTFIX01TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The test fixture is the platform for the digital-controlled quarter brick REF_600W_FBFB_XDPP1100 and eighth brick REF_275W_HBCT_XDPP1100. It supports input up to 80V, output up to 15V, and a maximum output current of 70A. It features I2C communication for user commands and telemetry monitoring, along with an SWD debugger port for firmware debugging.

Features

  • DC input up to 80 V
  • DC output up to 15 V
  • Output current up to 70 A
  • I2C communication port
  • SWD communication port
  • On board 12 V DC FAN

Benefits

  • Universal quarter brick and eighth brick test fixture
  • Supports SWD FW debug
  • Supports FAN speed control

Applications
