EVAL-PSIR2085

Power supply board to support EiceDRIVER™ isolated gate driver EVAL-Boards
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-PSIR2085
EVAL-PSIR2085
ea.

Product details

  • Applications
    Motor control&drives, Fast EV-charging, UPS, Solar
  • Board Type
    Evaluation Board
  • Dimensions
    55.5x45x20 mm
  • Family
    Gate Driver, CoolSiC™ MOSFET
  • Input Type
    DC
  • Product Name
    EVAL-PSIR2085
  • Qualification
    Industrial
  • Topology
    DC decoupling, Half Bridge
OPN
EVALPSIR2085TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

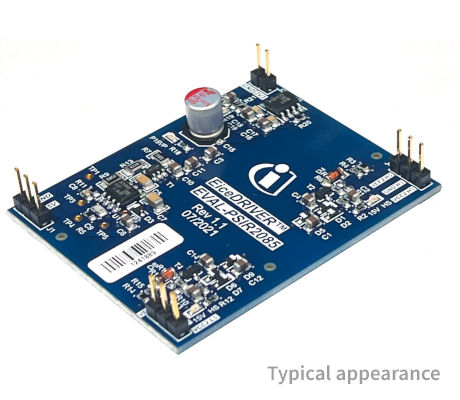

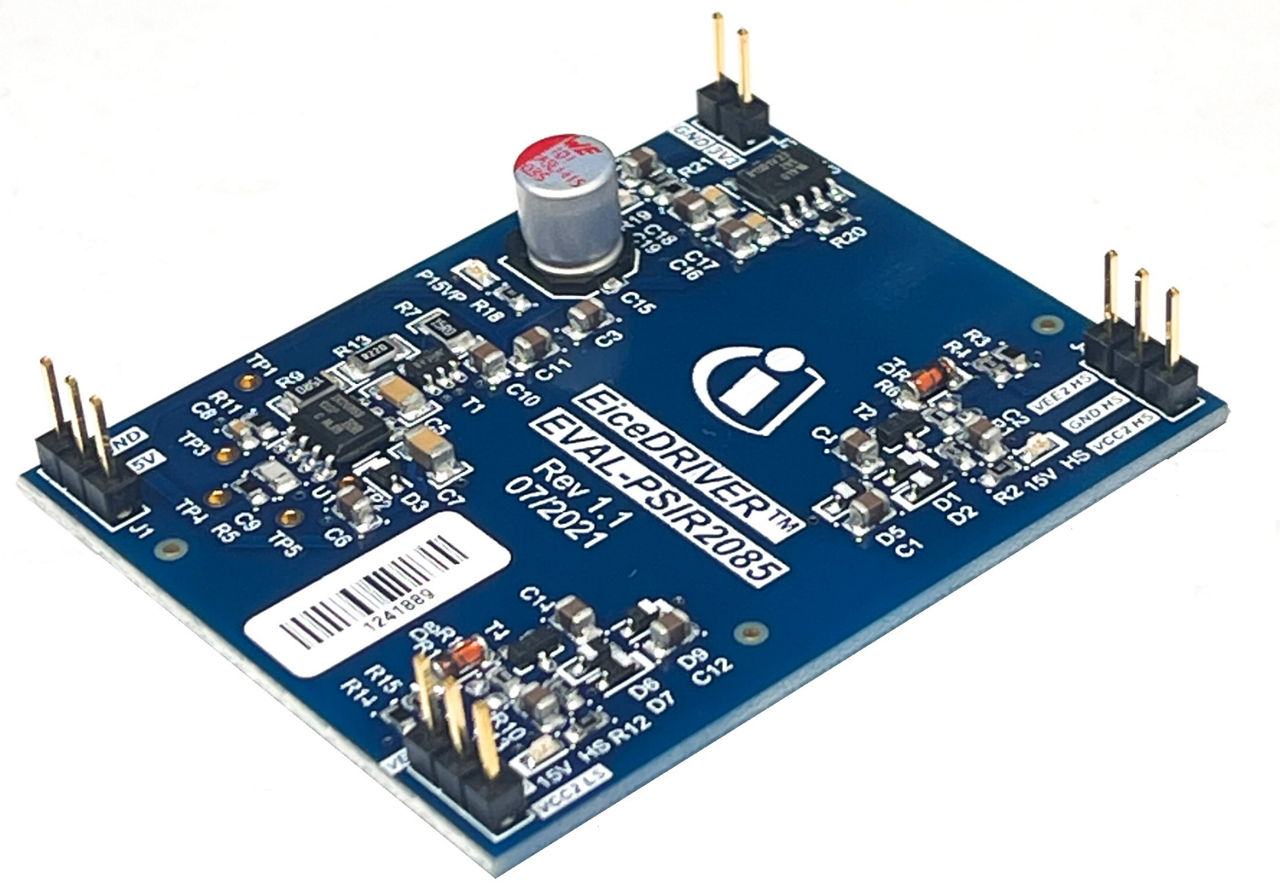

The EVAL-PSIR2085 was developed to provide the power to the EiceDRIVER™ isolated gate driver evaluation boards, such as the EVAL-1ED3122MX12H . This is a default power supply board, serving various different EiceDRIVER™ isolated gate driver evaluation boards. Some of the EVAL-boards also contain the power switches, such as MOSFETs , IGBTs and SiC MOSFETs .

Features

  • Galvanically isolated power supply
  • Power supply for Vcc1 (3.3 V) &
  • GND for primary side of the driver
  • Second power supply with Vcc 2_HS &
  • GND_HS & VEE2_HS
  • Third power supply with Vcc2_LS &
  • GND_LS & VEE2_LS
