EVAL_NLM0011_DC

LED power supply with current configuration using NFC-PWM IC
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_NLM0011_DC
EVAL_NLM0011_DC
ea.

Product details

  • Board Type
    Evaluation Board
  • Family
    LED Driver
  • Input Type
    DC
  • Interfaces
    USB
  • Product Name
    EVAL_NLM0011_DC
  • Qualification
    Industrial
  • Sub Application
    NFC LED configuration
  • Supply Voltage
    3 V to 25 V
  • Target Application
    Lighting, LED Lighting
OPN
EVALNLM0011DCTOBO1
Product Status not for new design
Infineon Package ---
Package Name NLM0011 Eva Kit W/O READ
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package ---
Package Name NLM0011 Eva Kit W/O READ
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

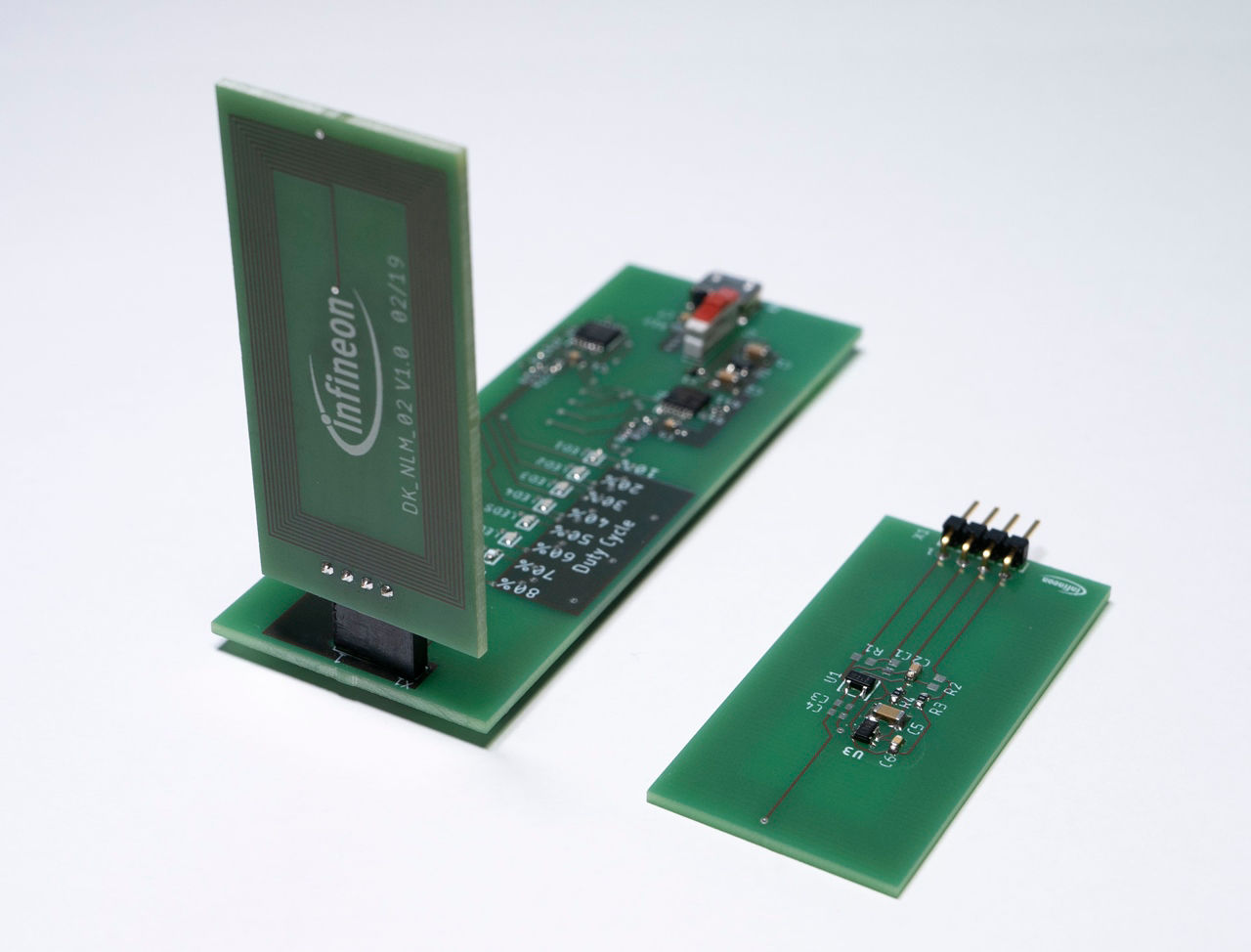

The EVAL_NLM0011_DC board enables quick demonstration of NFC-PWM configuration ICs using the NFC-PWM mobile app. It consists of two NFC-boards with NLM0011 for different supply voltage ranges and a demonstration board with an LED display. The NFC-PWM mobile app facilitates setting various parameters of the NLM0011, simplifying the evaluation and development processes.

Features

  • Quick demonstration of all features of NLM0011
  • Benefit of designing and testing own PWM filter
  • Setting all parameters in NLM0011

Benefits

  • No full system needed for software development
  • Option to connect own boards to NLM0011 incl. antenna (depending on supply voltage, two options are included (3 to 5V and 5 to 25V))

Applications
