not for new design
RoHS Compliant

EVAL-M7-LVMOS-INV

iMOTION™ MADK Evaluation board for OptiMOS™ 5 60 V MOSFETs
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M7-LVMOS-INV
EVAL-M7-LVMOS-INV
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    iMOTION™ Motor Control ICs, OptiMOS™ 5
  • Input Type
    DC
  • Interfaces
    MADK-M7
  • Motor Power max
    300 W
  • Output Current max
    12 A
  • Product Name
    EVAL-M7-LVMOS-INV
  • Sub Application
    Drives, Fans
  • Target Application
    Home Appliances
  • Topology
    3 phase motor drive, non-Isolated, 3-Phase control
OPN
EVALM7LVMOSINVTOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The EVAL-M7-LVMOS-INV is an integral part of the iMOTION™ Modular Application Design Kit (MADK) platform, generating a range of 3-phase inverter options when coupled with an iMOTION™ MADK control board with M7 connector. Using OptiMOS™ MOSFETs, it facilitates swift and efficient prototyping of inverterized motor control systems, such as fans, pumps, and compressors, with the EVAL-M7-D111T. Achieve motor operation in under an hour!

Features

  • Power board to drive 3-phase motor
  • 60V/3.3 mΩ OptiMOS™ IPD033N06N
  • Single or leg shunt current feedback
  • 60V DC input
  • Up to 300W output power
  • Test hooks to attach oscilloscope
  • MADK M7 32pin interface

Benefits

  • Ready-to-use for any motor < 300 W
  • Cost efficient inverter design
  • Robust design
  • Very good light load efficiency

Applications

Home appliances

Bill of Material

Documents

Documents

Design resources

Diagrams

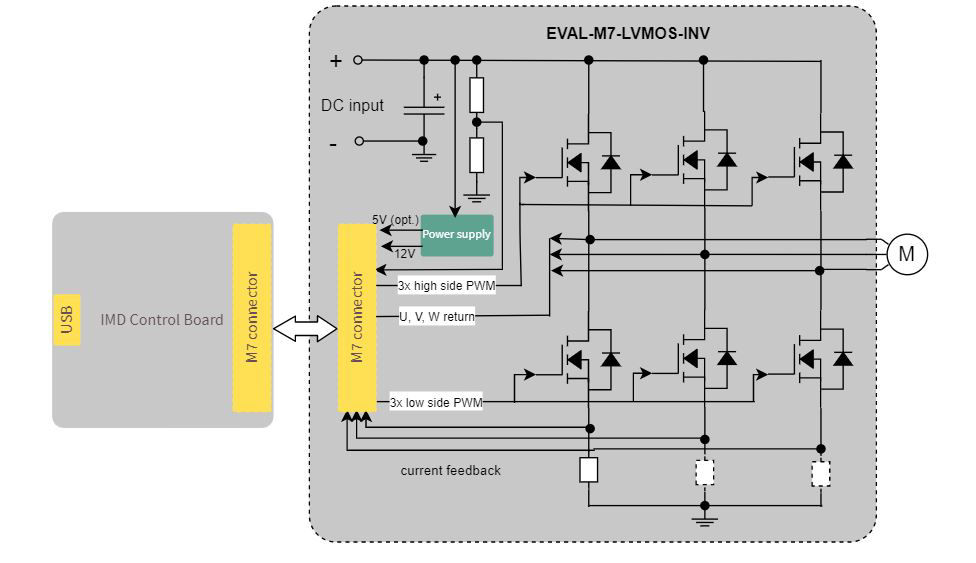

Blockdiagram-EVAL-M7-LVMOS-INV
Blockdiagram-EVAL-M7-LVMOS-INV
Blockdiagram-EVAL-M7-LVMOS-INV Blockdiagram-EVAL-M7-LVMOS-INV Blockdiagram-EVAL-M7-LVMOS-INV
×
