EVAL-M7-D112T

Control Board for iMOTION™ Modular Application Design Kit based on IMD112T-6F040
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M7-D112T
EVAL-M7-D112T
ea.
User Manual

Product details

  • Applications
    Aircon, Drives, Pumps
  • Board Type
    Evaluation Board
  • Dimensions
    70x10x51 mm
  • Family
    iMOTION™ Motor Control ICs
  • Input Type
    DC
  • Interfaces
    MADK-M7
  • Product Name
    EVAL-M7-D112T
  • Qualification
    Industrial
  • Sub Application
    Small Home Appliances, Major Home Appliances
  • Supply Voltage
    15 V
  • Target Application
    Motor Control & amp, amp, Drives, Industrial, Consumer, Automation
  • Topology
    3-Phase Motor
OPN
EVALM7D112TTOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

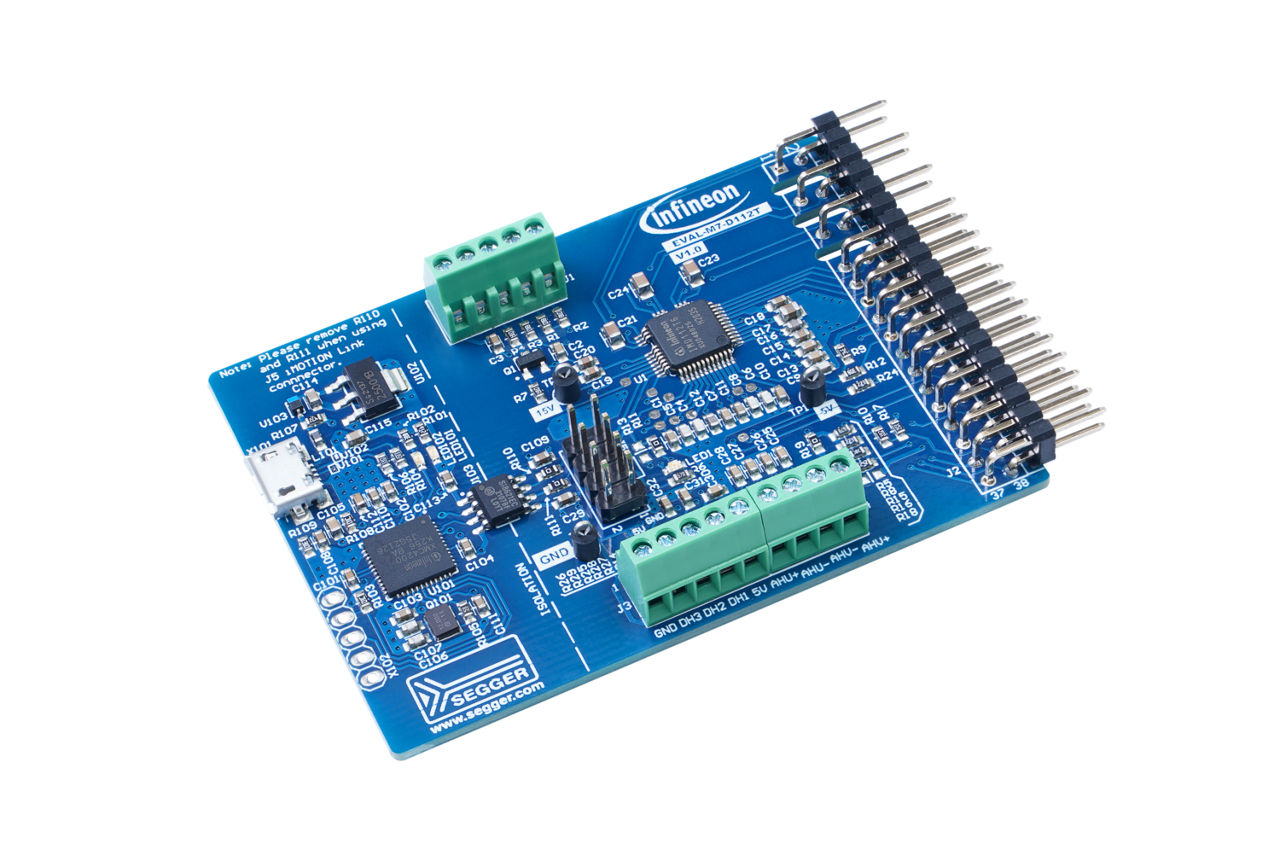

EVAL-M7-D112T is a MADK platform control board. The iMOTION™ driver IMD112T enables field-oriented motor control and power factor correction and integrates the three-phase gate driver. PC tool iMOTION™ Solution Designer (iSD) handles firmware revisions and provides system configuration, device setup and final tuning of the system. In combination with a matching power board EVAL-M7-D112T targets motor systems like fans, pumps and compressors.

Features

  • Field-proven Motion Control Engine (MCE)
  • Single-shunt or leg-shunt sensorless FOC
  • CCM boost power fcto correction (PFC)
  • Galvanically isolated debug interface
  • Integrated protection features
  • Scripting engine similar to a small VM

Benefits

  • Fast time to market – No coding required
  • Wide range of MADK power boards
  • High application flexibility
  • PC tool iMOTION™ Solution Designer
  • Easy parametrization and tuning
