EVAL-M3-302F

Control Board for iMOTION™ Modular Application Design Kit (MADK)
User Manual
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M3-302F
EVAL-M3-302F
ea.
User Manual

Product details

  • Applications
    Drives, Pumps, Air condition compressor, refrigerator compressor
  • Board Type
    Evaluation Board
  • Dimensions
    65x45
  • Family
    iMOTION™ Motor Control ICs
  • Input Type
    DC
  • Interfaces
    MADK-M3 30pin interface connector
  • Product Name
    EVAL-M3-302F
  • Qualification
    Industrial
  • Sub Application
    Pumps, Fans, Compressors, BLDC motor drives
  • Supply Voltage
    6 V
  • Target Application
    Motor Control & Drives, Automation, Industrial, Consumer
  • Topology
    3-Phase Inverter, PFC
Recommended
OPN
EVAL-M3-302FTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

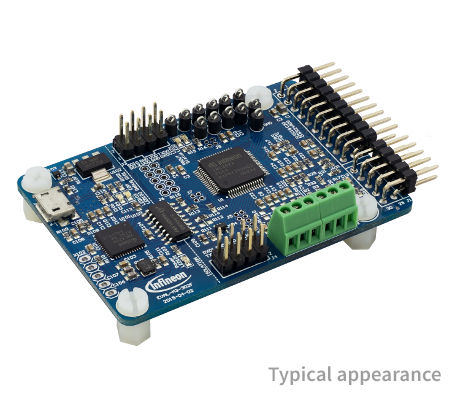

The EVAL-M3-302F, powered by IMC302A-F064 iMOTION™ Motor Control IC, enables Sensorless FOC and active PFC without coding. Combined with the EVAL-M3-CM615PN power board, it allows rapid prototyping of inverterized motor control systems like fans, pumps, and compressors, with active PFC. Users can download essential software and tools for system configuration and monitoring from the iMOTION™ Tools & Software webpage.

Features

  • Dual core motor and PFC control
  • Based on IMC302T-F064
  • Single- or leg shunt current sense
  • Sensorless or hall based FOC
  • Additional Arm® Cortex® M0
  • Integrated PFC control
  • Isolated on-board PC interface

Benefits

  • Run a motor in less than 1 hour!
  • Simple setup and easy tuning
  • iMOTION™ Solution Designer support
  • No coding for motor control
  • Use any M3 interface power board
