EVAL-M1-IM323

Evaluation board for CIPOS™ Tiny, features 600 V IM323-L6G IPM
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M1-IM323
EVAL-M1-IM323
User Manual

Product details

  • Applications
    Motor Control and Drives, Pumps, Hood fans, Washing machines, Residential air conditioners
  • Board Type
    Evaluation Board
  • Dimensions
    180x140
  • Family
    Microcontroller, Motor Driver, iMOTION™ Motor Control ICs, Intelligent Power Modules (IPM)
  • Input Type
    AC
  • Interfaces
    MADK-M1 20pin interface connector
  • Motor Power max
    1500 W
  • Pout max
    1200 W
  • Product Name
    EVAL-M1-IM323
  • Qualification
    Industrial
  • Supply Voltage max
    265 V
  • Target Application
    Motor Control and Drives, Residential air conditioners, Washing Machines
  • Topology
    3-Phase Inverter
Recommended
OPN
EVALM1IM323TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

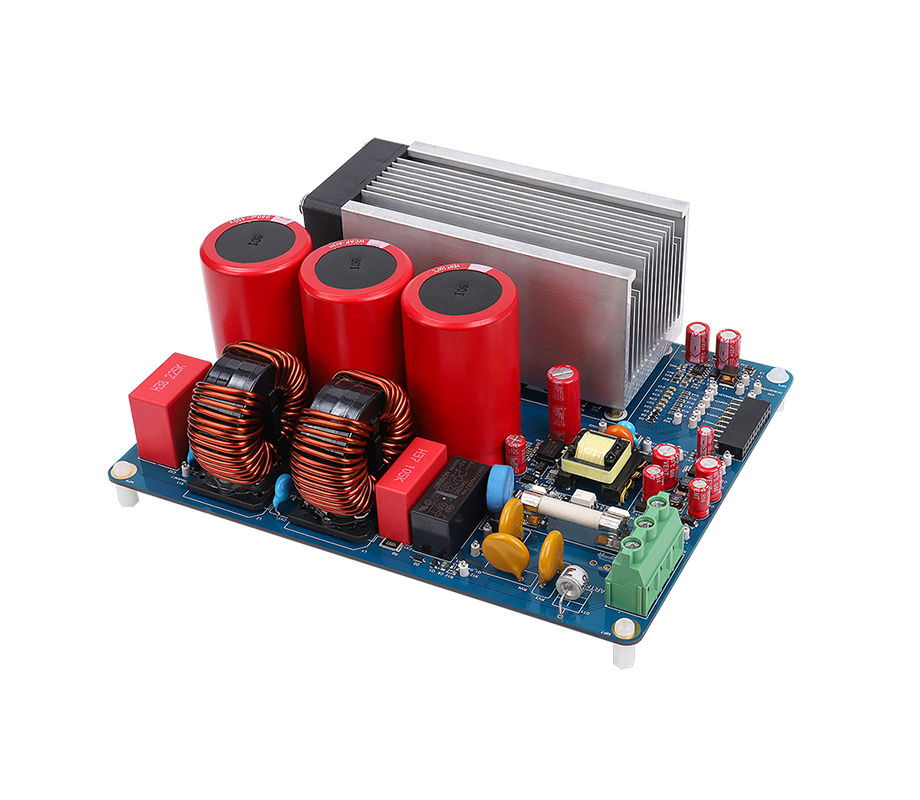

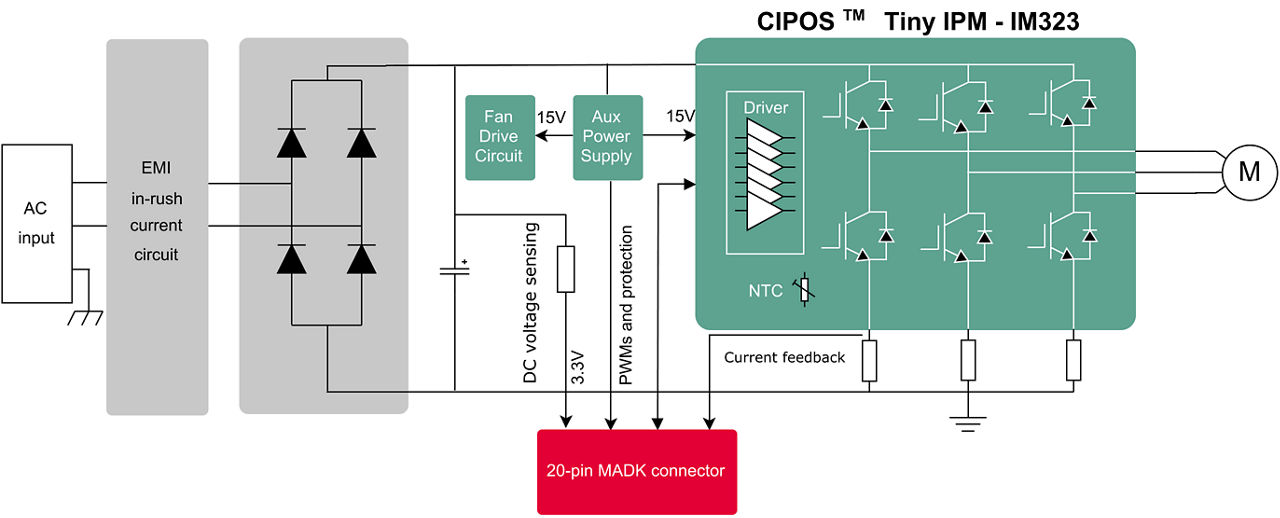

The EVAL-M1-IM323 board supports initial design of 3-phase motor drives for home appliances like air conditioners and pumps. As part of the iMOTION™ MADK, it demonstrates Infineon CIPOS™ intelligent power module (IPM) technology and advanced motion control engine (MCE 2.0) when paired with a control board like the EVAL-M1-101T.

Features

  • Input voltage 165 Vac to 265 Vac
  • Max. 12 A input current at 165 Vac
  • Max. 1500 W motor output at 220 VAC
  • Inrush current limiter
  • On-board EMI filter (pass EN55032)
  • Auxiliary power supply 15 V, 3.3 V
  • Protection features
  • Sensing of DC-link voltage
  • Thermistor output
  • PCB size is 180 mm × 140 mm
  • Two layers with 1 oz. copper
  • RoHS compliant
