EVAL-M1-IM06B50

NEW
Evaluation board for CIPOS™ Mini IPM, features 600 V IM06B50GC1

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M1-IM06B50
EVAL-M1-IM06B50

Product details

  • Applications
    Industrial Drives, HVAC, Heatpump
  • Board Type
    Evaluation Board
  • Dimensions
    166x166
  • Family
    Intelligent Power Modules (IPM), iMOTION™ Motor Control ICs , Microcontroller, Motor Driver
  • Interfaces
    MADK-M1 20pin interface connector
  • Motor Power max
    5000 W
  • Product Name
    EVAL-M1-IM06B50
  • Qualification
    Industrial
Recommended
OPN
EVALM1IM06B50TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

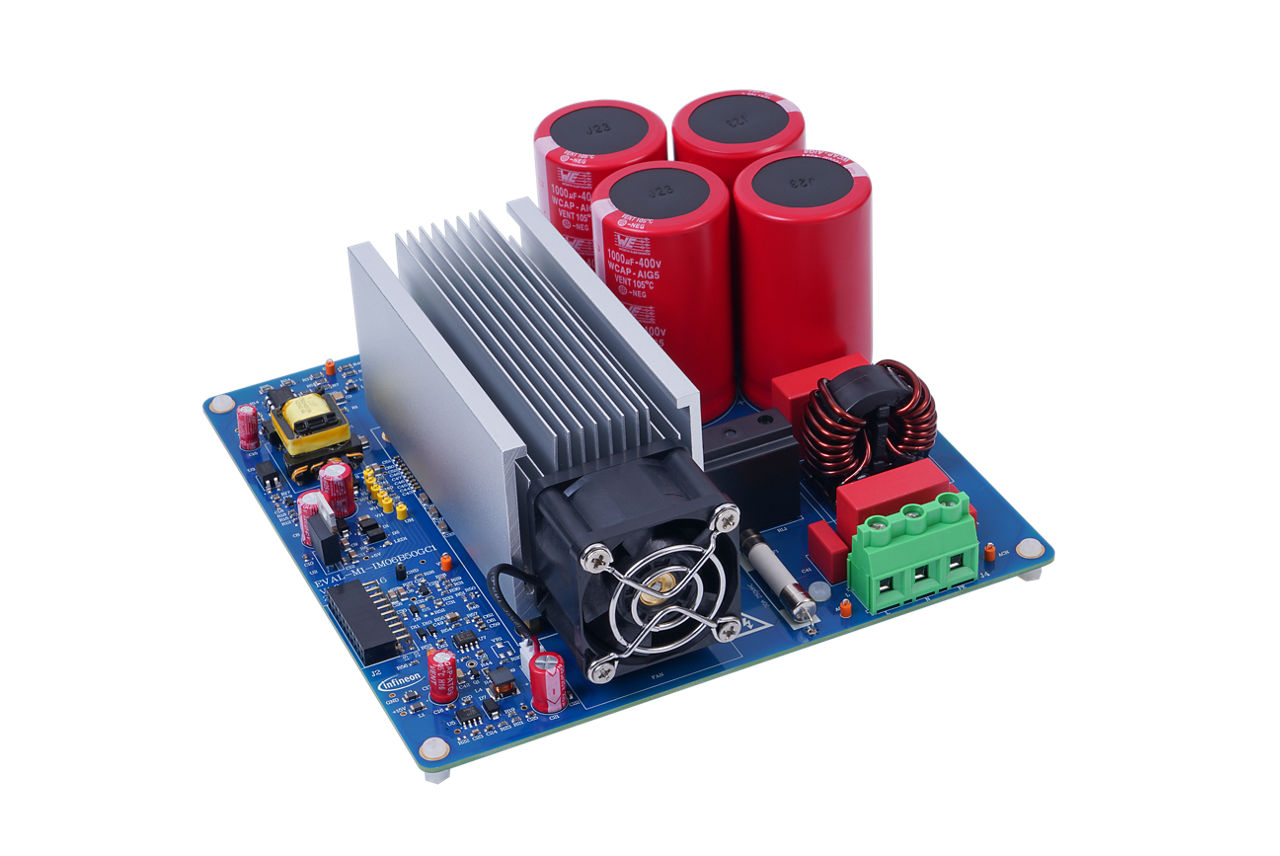

This evaluation board is a complete power stage, powered by IM06B50GC1 CIPOS™ Mini 600 V 50 A, equipped with MADK™ M1 20-pin interface connector to be used with the matching iMOTION™ MADK Control boards. It is recommended to use in the systems based on 100- 230 V AC mains voltage up to 5000 W inverter board output power with active cooling.

Features

  • Ready to use three-phase inverter
  • Output power up to 5000 W
  • On-board EMI filter
  • Pass EMI standards EN55032
  • RoHS compliant
