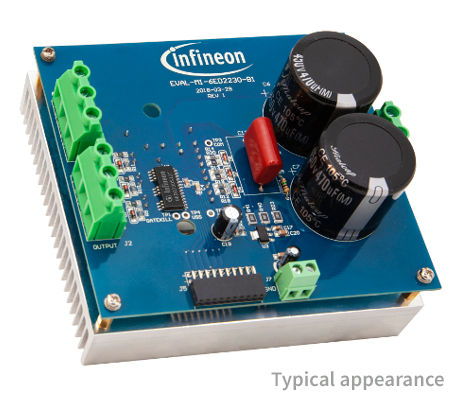

EVAL-M1-6ED2230-B1

Evaluation Board for 1200 V Three-Phase SOI Gate Driver and EasyPIM™ IGBT modules
Application Notes
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-M1-6ED2230-B1
EVAL-M1-6ED2230-B1
Application Notes

Product details

  • Applications
    Compressors, industrial drives
  • Board Type
    Evaluation Board
  • Family
    IGBT Modules, Gate Driver
  • Input Type
    AC, DC
  • Motor Power max
    2000 W
  • Pout max
    2000 W
  • Product Name
    EVAL-M1-6ED2230-B1
  • Qualification
    Industrial
  • Sub Application
    Compressors, industrial drives
  • Supply Voltage
    200 V to 800 V
  • Target Application
    Commercial Air Conditioning, Motor Control & Drives, Pumps, Fans
  • Topology
    3-Phase Motor
Recommended
OPN
EVALM16ED2230B1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
The EVAL-M1-6ED2230-B1 is a complete power evaluation board with a 1200 V three-phase gate driver 6ED2230S12T and a EasyPIM™1B 1200 V three-phase module FP15R12W1T4. It supports motor drive applications up to 2 kW, providing AC and DC inputs, 3-phase power output, single emitter shunt for current sensing, and voltage divider for DC-link voltage measurement. Compatible with iMOTION™ MADK like Eval-M1- 099M-C for motor control.

Features

  • Infineon Thin-Film-SOI technology
  • Fully operational to +1200 V
  • Integrated Diode and OCP
  • Floating channel for bootstrap op.
  • Output source/sink +0.35 A/‐0.65 A
  • Tolerant to neg. transient volt.
  • Undervolt. lockout for both channel
  • 3.3, 5, & 15 V input logic compati.
  • Over current protection
  • Several fault functions
  • Matched prop. delay for all chan.
  • Integrated 460 ns deadtime protect.
