EVAL_ISO_2DIB0410F

Evaluation board for ISOFACE™ dual-channel digital isolators
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_ISO_2DIB0410F
EVAL_ISO_2DIB0410F
ea.
User Manual

Product details

  • Input Type
    DC
  • Input Voltage
    3.3 V
  • Iout
    5 A
  • Output Voltage
    3.3 V
  • Target Application
    Power Supplies, Energy Storage, Industry Automation, Telecom, SMPS
  • Topology
    Active Clamp, Half Bridge, Phase Shifted FB, PFC Interleave, PFC, LLC, Isolated, Full Bridge, Flyback
  • Vout
    DC
Recommended
OPN
EVALISO2DIB0410FTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

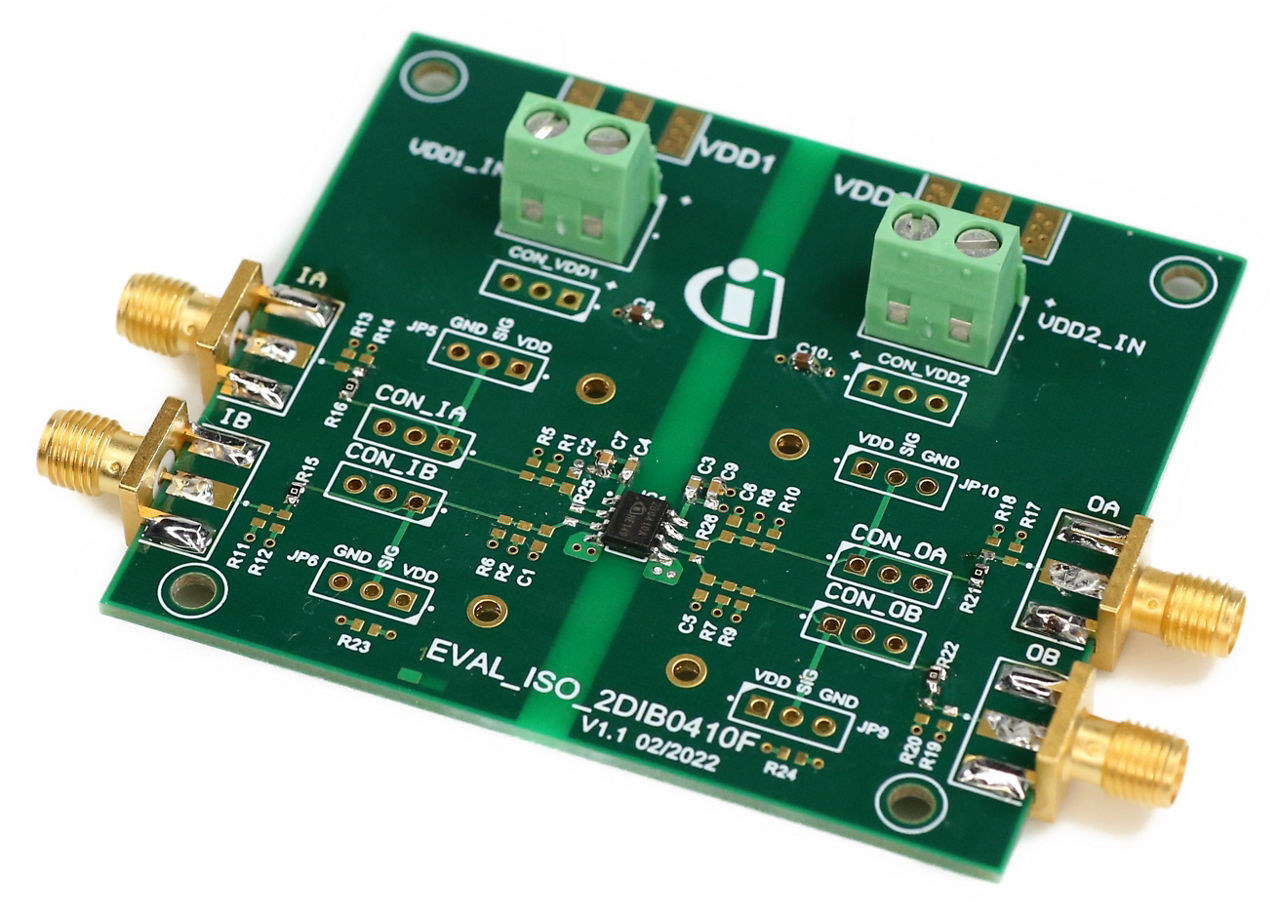

This design was developed to evaluate the performance of Infineon’s ISOFACE™ 2-channel digital isolators. It features the 2DIB0410F with 2 forward and 0 reverse channels and a low default output.

Features

  • High common mode transient immunity
  • Accurate timing performance
  • TTL/CMOS input thresholds and default fail-safe output state
  • Both component and system-level certification

Benefits

  • For fast switching power switches with high dv/dt
  • Enabling high power density designs
  • Optimized noise margin and reliable default output state in case of failures for different applications
  • Easy device replacement and alternative sourcing



List of Components

  • ISOFACE™ dual-channel digital isolator 2DIB0410F
