EVAL-ICE3AR1080VJZ
EVAL-ICE3AR1080VJZ
ea.

Product details

  • Board Type
    Evaluation Board
  • Family
    CoolSET™
  • Product Category
    CoolMOS™, CoolSET™
OPN
EVALICE3AR1080VJZTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

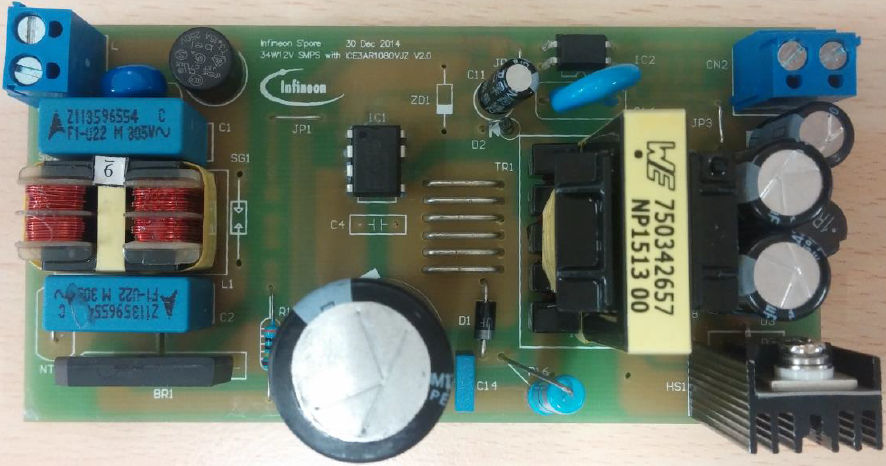

This is the universal input 34 W 12 V off-line flyback converter power supply using Infineon CoolSET™ F3R80 family, ICE3AR1080VJZ. The converter is operated in Discontinuous Conduction Mode, 100 kHz fixed frequency, very low standby power and various mode of protections for a high reliable system. This evaluation board is designed to evaluate the performance of ICE3AR1080VJZ in ease of use.

Features

  • 800V avalanche rugged CoolMOS™ with startup cell
  • Active Burst Mode to reach the lowest Standby Power <100mW
  • Selectable entry and exit burst mode level Adjustable blanking Window for high load jumps
  • Frequency jitter and soft driving for low EMI
  • Adjustable input OVP
  • Auto Restart protection for over load, over temperature and over voltage
  • Low Operating temperature down to -40°C
  • Pb-free lead plating, halogen free mold compound, RoHS compliant

Applications
