EVAL-ICE2QR1065Z

board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-ICE2QR1065Z
EVAL-ICE2QR1065Z

Product details

  • Board Type
    Evaluation Board
  • Family
    CoolSET™
OPN
EVALICE2QR1065ZTOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

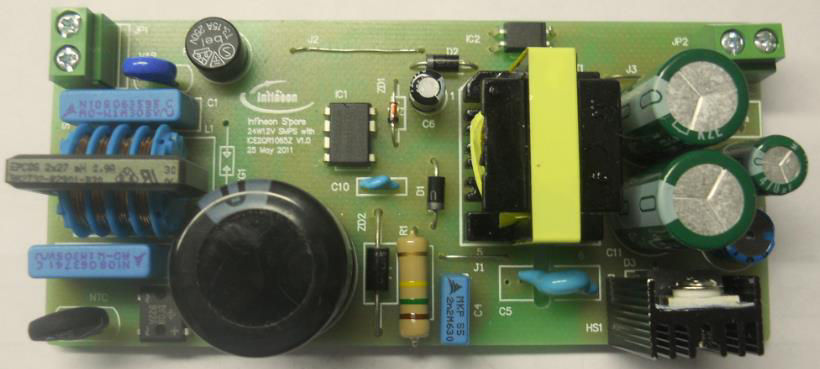

The 24W power supply evaluation board uses ICE2QR1065Z Quasi-resonant CoolSET™ for a quasi resonant flyback converter. Integrated CoolMOS™ simplifies PCB design. Valley switching enhances efficiency, and DCM mode control improves EMI performance. Infineon’s digital frequency reduction technology boosts system efficiency. The ICE2QR1065Z includes adjustable protection functions for system safety and customization.

Features

  • Industry first IC in DIP7 package with 24W maximum output power
  • 650V avalanche rugged CoolMOS™ with built in depletion startup cell
  • Quasi-resonant operation
  • Digital frequency reduction with decreasing load
  • Cycle-by-cycle peak current limitation with foldback point correction
  • Built-in digital soft-start
  • Direct current sensing with internal Leading Edge Blanking Time
  • VCC under voltage protection: IC stop operation, recover with softstart
  • VCC over voltage protection: IC stop operation, recover with softstart
  • Openloop/Overload protection: Auto Restart
  • Output overvoltage protection: Latch-off with adjustable threshold
  • Short-winding protection: Latch-off
  • Over temperature protection: Autorestart
