EVAL-FP50R12W2T7M5

NEW
Evaluation board design for EasyPIM™ 2B for General Purpose Drives

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-FP50R12W2T7M5
EVAL-FP50R12W2T7M5

Product details

  • Applications
    General purpose drives
  • Board Type
    Evaluation Board
  • Dimensions
    300x250mm
  • Family
    IGBT
  • Frequency
    2 kHz to 16 kHz
  • Input Type
    DC
  • Interfaces
    M5
  • Motor Power max
    11000 W
  • Mounting
    Surface Mount (SMD), THT
  • Output Current max
    26 A
  • Output Voltage max
    690 V
  • Pout max
    11 kW
  • Product Name
    EVAL-FP50R12W2T7M5
  • Qualification
    Industrial
  • Sub Application
    Motor drives
  • Supply Voltage
    24 V
  • Target Application
    General Purpose Drives
  • Topology
    3-Phase - 2 Level
Recommended
OPN
EVALFP50R12W2T7M5TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

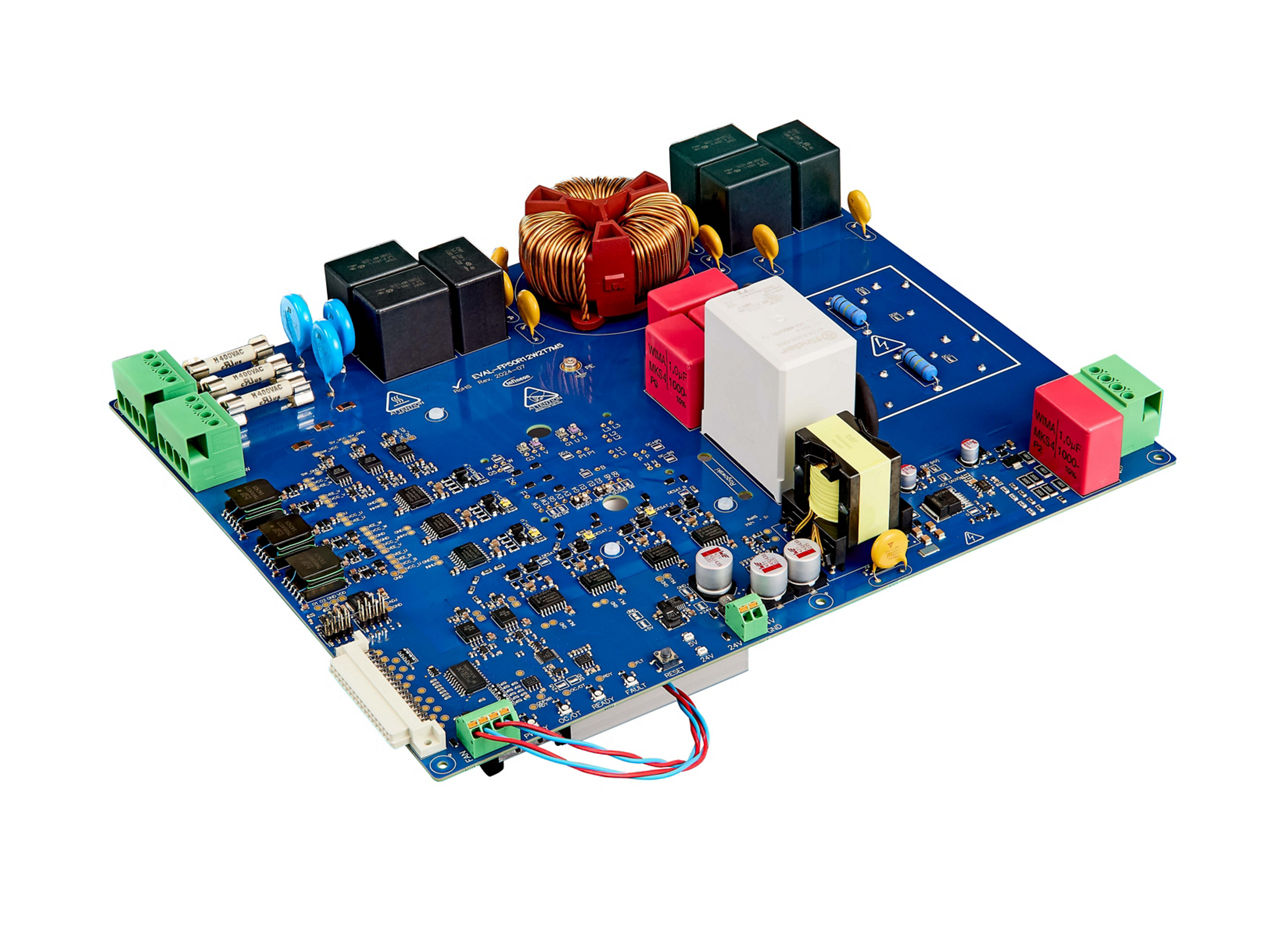

EVAL-FP50R12W2T7M5 with EasyPIM™ 2B is intended for general-purposes drives powered by TRENCHSTOP™ IGBT7. The evaluation board helps investigate the module’s behavior with double-pulse testing (DPT) and system tests. In addition to general-purpose drives control, the evaluation board offers high-voltage sensing, phase-current sensing, temperature sensing, protection measures, precise DESAT-detection, and Miller clamping.

Features

  • EasyPIM™ with TRENCHSTOP™ IGBT
  • 3-phase drive control in one system
  • Passive rectification and power supply
  • Overtemperature, overcurrent detection
  • Isolated internal power supply

Benefits

  • Wide range of use
  • Multiple testpoints for debugging
  • Various gate voltages
  • Compact design with reinforced isolation

Bill of Material

Documents

Documents

Design resources

Diagrams

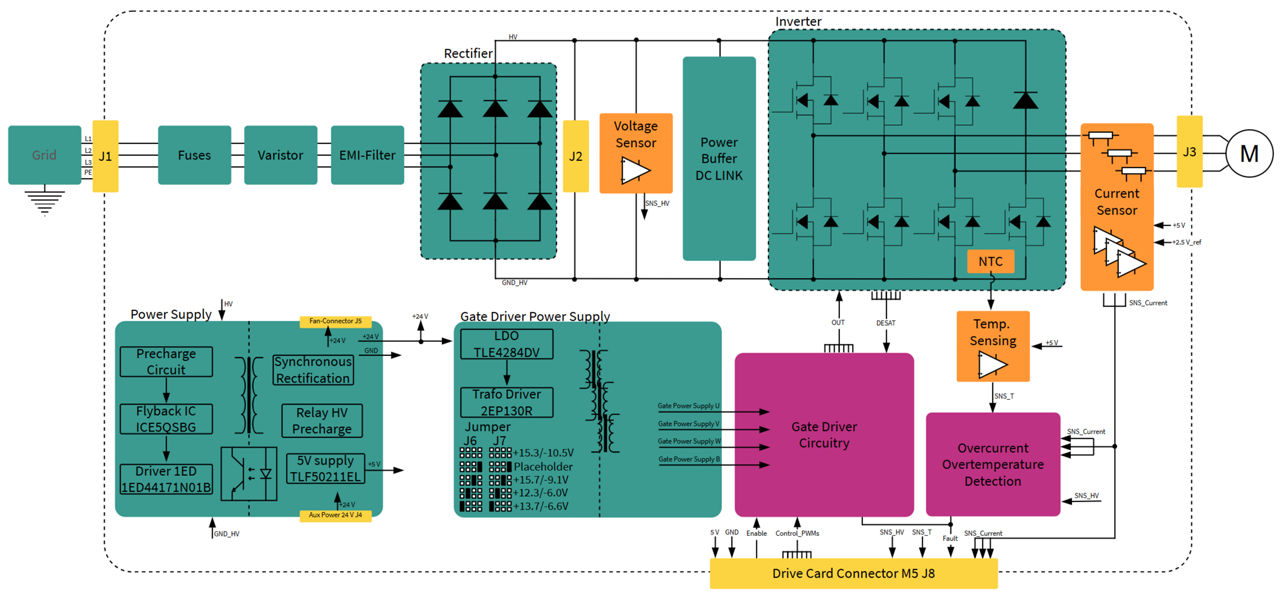

Block Diagram EVAL-FP50R12W2T7M5
Block Diagram EVAL-FP50R12W2T7M5
Block Diagram EVAL-FP50R12W2T7M5 Block Diagram EVAL-FP50R12W2T7M5 Block Diagram EVAL-FP50R12W2T7M5
×
