EVAL_FAN_XMC_PFD7

Motor drive evaluation board using PFD7 super junction MOSFET
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_FAN_XMC_PFD7
EVAL_FAN_XMC_PFD7
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    87mm×87mm×25mm
  • Family
    CoolMOS™ PFD7
  • Frequency
    6 kHz to 20 kHz
  • Input Type
    DC, AC
  • Pout
    100 W
  • Product Name
    EVAL_FAN_XMC_PFD7
  • Qualification
    Standard
  • Supply Voltage
    85 V to 265 V
  • Target Application
    Washing Machines, Refrigerator, Pumps, IoT, Household, Motor Control & Drives, Home Appliances
  • Topology
    3-Phase - 2 Level
Recommended
OPN
EVALFANXMCPFD7TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

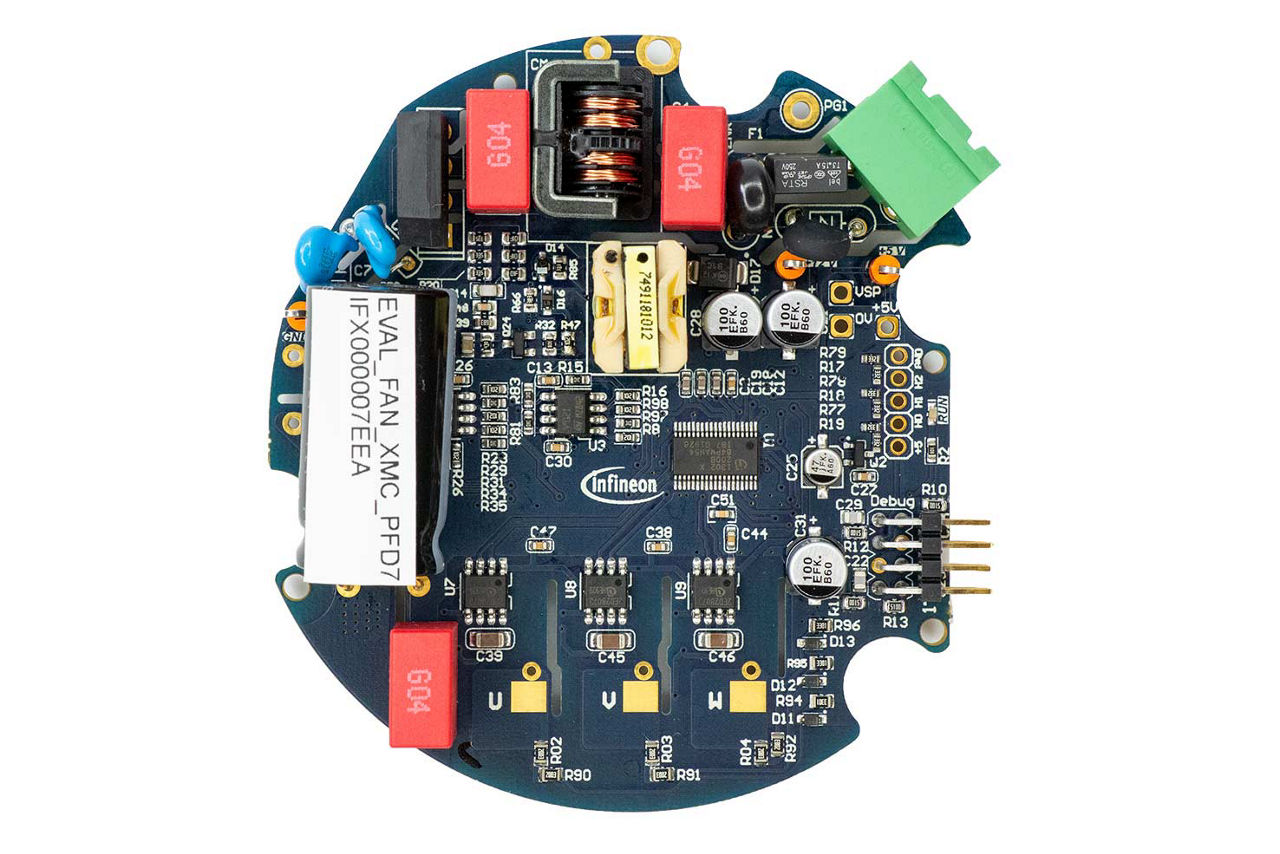

The EVAL_FAN_XMC_PFD7 motor drive board provides a sensorless synchronous rectification BLDC/PMSM control algorithm, adjustable switching frequency up to 20kHz, and the option for two-phase or three-phase modulation. It uses Infineon's CoolMOS™ PFD7 MOSFET series for improved efficiency. Interfacing is possible through XMC™ Link, which must be ordered separately.

Features

  • Sensorless field orientated control (FOC)
  • Best-in-class high voltage MOSFETs for hard commutation topology [B6 inverter]
  • Low bill-of-material cost contributed by CoolMOS™ PFD7 and XMC™ algorithm
  • Quasi-resonant CoolSET™ offers lower EMI and higher efficiency
  • Graphical user interface (GUI) allowing ease-of-use
  • Input voltage 90~265 VAC

Benefits

  • High efficiency
  • Cost-effective
  • Simplified design
  • Near to productive solution

Applications
