EVAL-F3L8MXTR12C2M2_P
NEW
on request
RoHS Compliant

EVAL-F3L8MXTR12C2M2_P

NEW
A single-phase evaluation board for active front with EasyPACK™ 2C CoolSiC™ MOSFET 1200 V M2 .XT

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-F3L8MXTR12C2M2_P
EVAL-F3L8MXTR12C2M2_P

Product details

  • AC output voltage type
    3L AC
  • Applications
    Fuel-cell DC-DC boost converter, EV charging
  • Board Type
    Evaluation Board
  • Family
    CoolSiC™ MOSFET
  • Hardware Compatibility
    PLECS RT BOX
  • Input Type
    DC
  • Input Voltage
    24 V
  • Interfaces
    PLECS RT
  • Mounting
    Surface Mount (SMD), THT
  • On-Board Peripherals
    Power Supply, Current sense, NTC
  • Operating Voltage
    800 V
  • Output Current
    150 A
  • Output Voltage Type
    AC
  • Product Name
    EVAL-F3L8MXTR12C2M2_P
  • Qualification
    Industrial
  • Sensors
    Current
  • Sub Application
    Fuell-cell DC-DC boost converter
  • Supply Voltage
    24 V
  • Target Application
    EV Charger
  • Topology
    3-level
OPN
EVALF3L8MXTR12C2M2PTOBO2
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
This single-phase NPC2 active front end evaluation board enables the fast testing of Infineon products for hardware developers. As a fully functional hardware building block with measurements features, it can be fully integrated for system evaluation purposes.

Features

  • Single-phase active front end eval board
  • Easy2C 3-level CoolSiC 1200 V .XT
  • Gate driver supply +15V/+18V and -3V/-5V
  • Reinforced analog measurement functions
  • Reinforced power stage control
  • Independent low voltage supply
  • Various control interfaces

Benefits

  • Easy-to-use hardware for DPT evaluation
  • Low inductive 3L PFC design
  • Up to 60 kHz in hard switching
  • 200°C overload operation

Bill of Material

Documents

Design resources

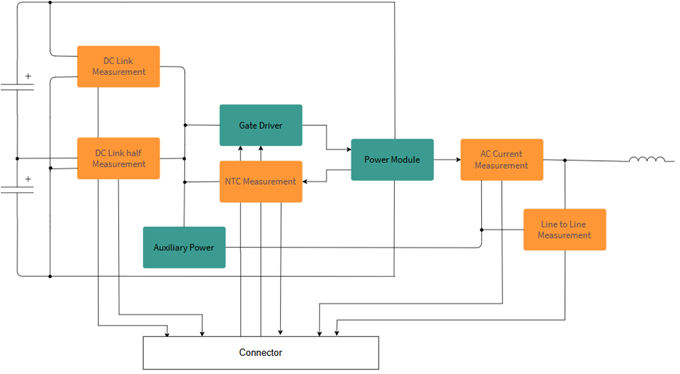

Diagrams
