EVAL_AUDIO_I2S_COM

Kit evaluation board - I2S interface board for EVAL_AUDIO_MA12040P and EVAL_AUDIO_MA12070P
Additional Technical Information
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

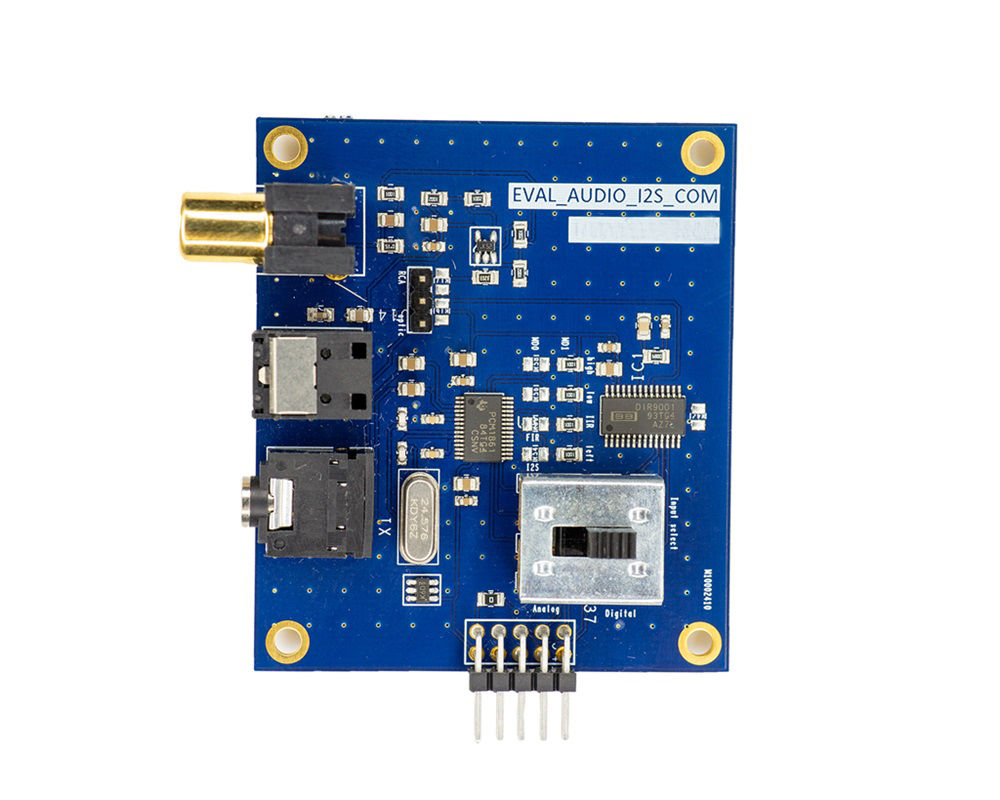

EVAL_AUDIO_I2S_COM
EVAL_AUDIO_I2S_COM
ea.
Additional Technical Information

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    72mm×64mm×20mm
  • Family
    MERUS™
  • Frequency
    3072 kHz to 12288 kHz
  • Input Type
    DC
  • Output Voltage max
    3.5 V
  • Pout max
    0.086 W
  • Product Name
    EVAL_AUDIO_I2S_COM
  • Qualification
    Standard
  • Supply Voltage
    3.1 V to 3.5 V
  • Target Application
    Audio
OPN
EVALAUDIOI2SCOMTOBO1
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The universal I2S interface board is an add-on board intended to use with the EVAL_AUDIO_MA12040P and EVAL_AUDIO_MA12070P Class D audio amplifier boards.The I2S interface board converts either analog or digital S/PDIF audio into an I2S format that matches the default settings of the EVAL_AUDIO_MA1240P/MA12070P boards.

Features

  • Analog audio input via 3.5mm jack
  • Digital audio input via RCA
  • Digital audio optical connector

Benefits

  • Support analog and digital input
  • I2S format digital output
  • No additional power supply needed
  • Easy to setup and use

Applications
