EVAL_AUDAMP25

Reference design/Evaluation board - 200 W / 4 Ohms x 2-channel class D audio power amplifier featuring MA5332
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_AUDAMP25
EVAL_AUDAMP25
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    MERUS™
  • Frequency
    400 kHz
  • Input Type
    DC
  • Output Current
    2 A
  • Output Voltage
    10 V
  • Pout
    400 W
  • Product Name
    EVAL_AUDAMP25
  • Supply Voltage
    73 V
  • Target Application
    Audio
  • Topology
    Buck
Recommended
OPN
EVALAUDAMP25TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

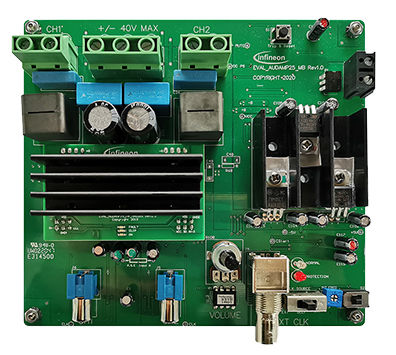

The EVAL_AUDAMP25 MA5332 evaluation board features a 2-channel, 200 W/ch (4 Ω at ±36.5 V; with heatsink) half-bridge class D audio power amplifier for Hi-Fi audio systems. It illustrates the use of the MA5332 IC, protection circuits implementation, and the design of an optimized PCB layout using Infineon integrated Class D IC. Notably, the reference design does not require additional heatsink or fan cooling for normal operation, up to one-eighth of continuous rated power.

Features

  • Reference design board - MA5332MS
  • 200Wx2, 10% THD+N, 4 Ω at ±36.5 V
  • Overcurrent protection (OCP)
  • Overvoltage protection (OVP)
  • Undervoltage protection (UVP)
  • Overtemperature protection (OTP)
  • DC Protection(DCP)
  • Self-oscillating HB topology
  • Optional clock synchronization

Benefits

  • Split power supply
  • SE/BTL/PSE output
  • High audio quality
  • Low noise
  • High efficiency

Applications
