EVAL_800W_PSU_4P_C7

Optimized form, fit and function test platform for server applications
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_800W_PSU_4P_C7
EVAL_800W_PSU_4P_C7
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    200 x 70 x 44mm
  • Family
    Gate Driver, Microcontroller, MOSFET
  • Input Type
    AC
  • Mounting
    THD, SMD
  • Output Current
    66 A to 83 A
  • Output Voltage
    12 V
  • Pout
    0 W to 800 W
  • Qualification
    Industrial
  • Sub Application
    Server
  • Supply Voltage
    90 V to 265 V
  • Target Application
    Power Supplies
  • Topology
    LLC, PFC
Recommended
OPN
EVAL800WPSU4PC7TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

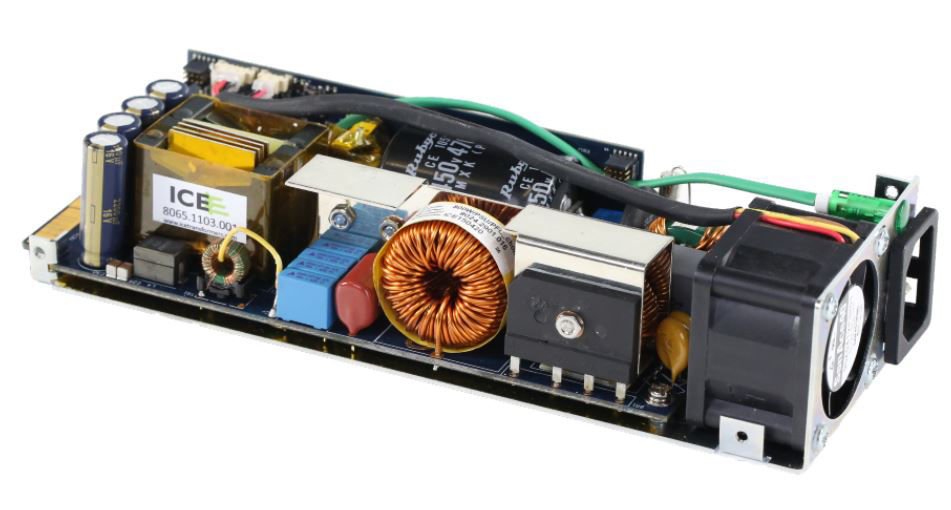

The 800W evaluation board showcases the operation of the 600V CoolMOS™ C7 SJ MOSFET, CoolSiC™ Schottky diode 650V G6, OptiMOS™ 40V, 1EDI and 2EDN EiceDRIVER™, quasi-resonant flyback (QR), and XMC™ 1400/4200 controllers. It utilizes digital control to exhibit switching performance and power density design.
