EVAL_800W_PFC_P7

800W 65kHz Platinum server design
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_800W_PFC_P7
EVAL_800W_PFC_P7
Application Notes

Product details

  • Board Type
    Demo Board
  • Dimensions
    120 x 80 x 40mm
  • Family
    Power Controller (PWM, PFC), MOSFET, Microcontroller, Gate Driver
  • Frequency
    47 Hz to 63 Hz
  • Input Type
    AC
  • Mounting
    SMD, THD
  • Output Current
    0 A to 2.1 A
  • Output Voltage
    370 V to 390 V
  • Pout
    0 W to 800 W
  • Qualification
    Industrial
  • Sub Application
    Telecom, Industrial, Server
  • Supply Voltage
    90 V to 265 V
  • Target Application
    Power Supplies
  • Topology
    PFC, Continuous Conduction Mode (CCM)
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

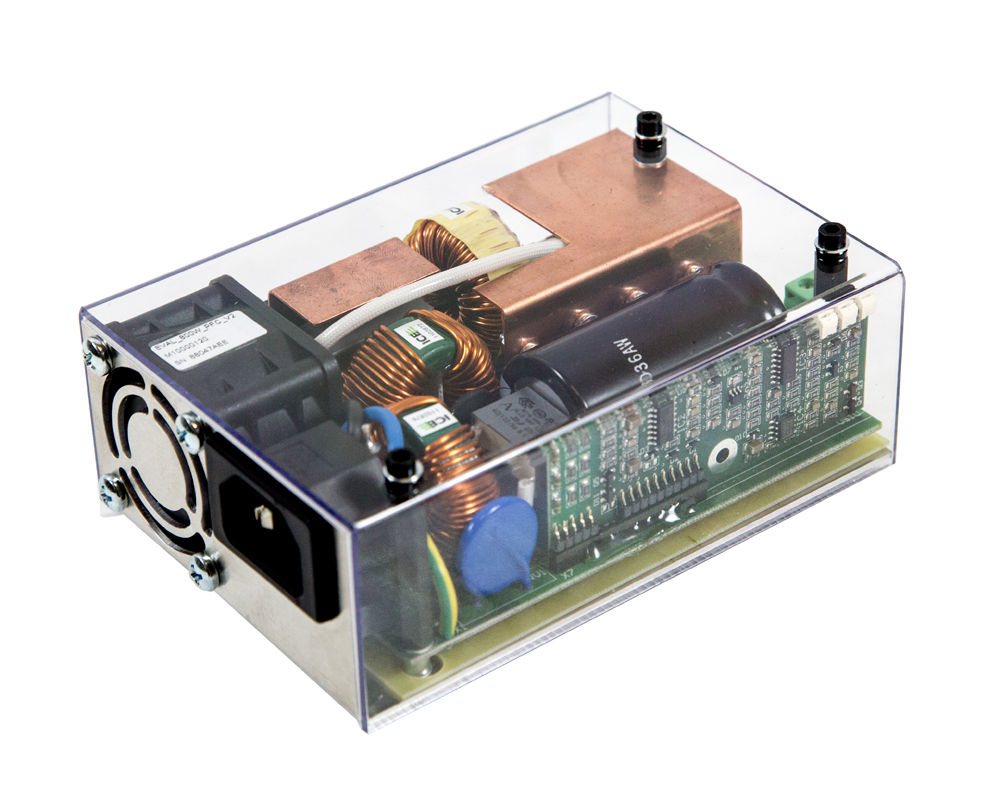

The purpose of this demoboard is to demonstrate the performance of the latest 600V CoolMOS™ P7 superjunction MOSFET technology working at 65kHz in a CCM PFC boost converter along with 2EDN EiceDRIVER™ ICs, CoolSiC™ Schottky diode 650V G5 using analog control and CoolSET™ QR PWM controller.

Features

  • Topology classic PFC working in CCM
  • Input voltage: 90-265VAC
  • Max peak input current, 10A RMS @Vin = 90VAC
  • Max peak input current, 10A RMS @Vin = P out_max = 800W
  • Board dimensions: 120 x 80 x 40mm

Benefits

  • Analog control

Applications
