EVAL_800W_PFC_C7_V2

PFC demoboard system solution high power density 800W 130kHz platinum server design
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_800W_PFC_C7_V2
EVAL_800W_PFC_C7_V2
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    120 x 80 x 40mm
  • Family
    Diode (Si, SiC), MOSFET, Power Controller (PWM, PFC), Gate Driver
  • Frequency
    47 Hz to 63 Hz
  • Input Type
    AC
  • Interfaces
    Digital daughter card has a 2x4 pin header connector
  • Mounting
    Surface Mount Technology (SMT), Thru hole
  • Output Current
    0 A to 2.1 A
  • Output Voltage
    370 V to 390 V
  • Pout
    0 W to 800 W
  • Sub Application
    Server PSU, Telecom rectifiers, PC Silberbox
  • Supply Voltage
    90 V to 265 V
  • Target Application
    Power Supplies
  • Topology
    PFC
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

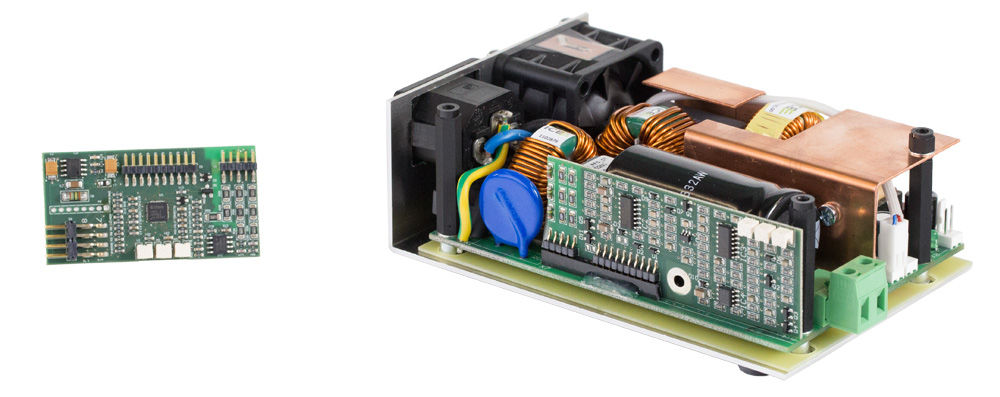

The purpose of this demoboard is to demonstrate the performance of the latest 600V CoolMOS™ C7 superjunction MOSFET technology (IPP60R180C7) working at 130kHz in a CCM PFC boost converter along with 2EDN EiceDRIVER™ ICs and CoolSiC™ Schottky diode 650V G5 using analog and digital control (ICE3PCS01G, ICE2QR2280Z, XMC1402-Q040X0128 AA).

Features

  • Topology classic PFC working in CCM
  • Input voltage: 90-265VAC
  • Max peak input current, 10A RMS @Vin = 90VAC
  • Max peak input current, 10A RMS @Vin = P out_max = 800W
  • Board dimensions: 120 x 80 x 40mm

Benefits

  • Analog and digital control

Applications
