EVAL_7126G_100V_GANC

Half-bridge evaluation board with CoolGaN™ Transistor 100 V G3 and TDI EiceDRIVER™ 1EDN7126G
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_7126G_100V_GANC
EVAL_7126G_100V_GANC
User Manual

Product details

  • Family
    CoolGaN™ EiceDRIVER™
  • Input Voltage
    48 V
  • Output Current max
    25 A
  • Switching Frequency
    1 MHz
Recommended
OPN
EVAL7126G100VGANCTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 0
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

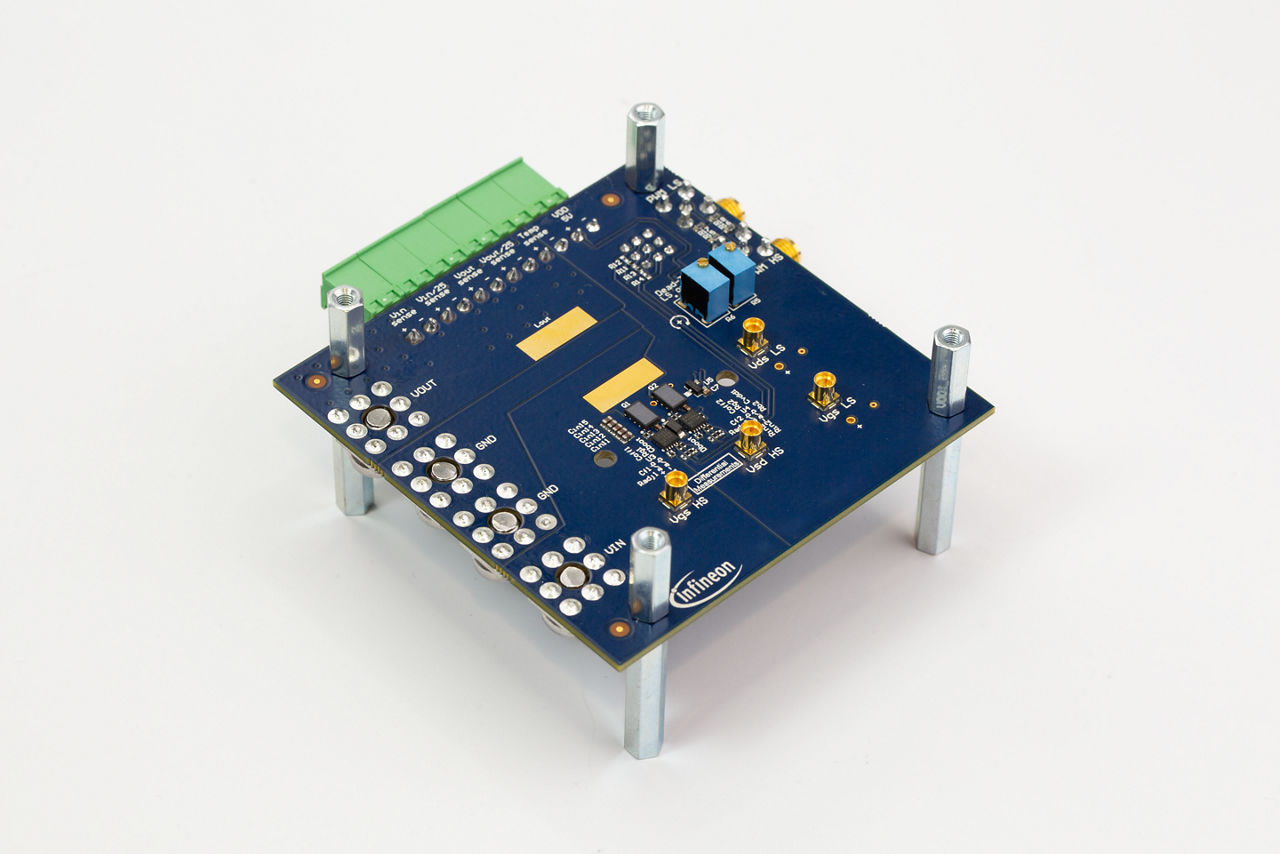

The EVAL_7126G_100V_GaNc allows designers to conduct a comprehensive general-purpose evaluation of the featured CoolGaN™ Transistor 100 V G3 together with the dedicated TDI EiceDRIVER™ gate driver.
The GaN transistor is housed in a small PQFN 3x5 package and has a very low on-state resistance of 2.4 mΩ, making it ideal for demanding high-voltage and high-current applications. The high-side gate driver IC with truly diffential inputs is tailor-made for driving GaN transistors.

Features

  • Optimized half-bridge layout
  • Waveform connection
  • DC voltage connection
  • On-board temperature sensing
  • Multiple PWM input options

Benefits

  • High efficiency
  • High power density
  • Easily scalable design
  • Buck, boost, or double pulse test
