Active and preferred
RoHS Compliant

EVAL_7116G_100V_SSO8

Half bridge evaluation board with TDI EiceDriverTM 1EDN7116G and OptimosTM 6 100 V
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_7116G_100V_SSO8
EVAL_7116G_100V_SSO8
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Family
    OptiMOS™, EiceDRIVER™ Gate Driver
  • Input Type
    DC
  • Output Voltage max
    100 V
  • Pout max
    2000 W
  • Qualification
    Industrial
  • Supply Voltage
    10 V to 11 V
  • Target Application
    Motor Control, Solar, Server, Telecom
  • Topology
    Half Bridge
Recommended
OPN
EVAL7116G100VSSO8TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

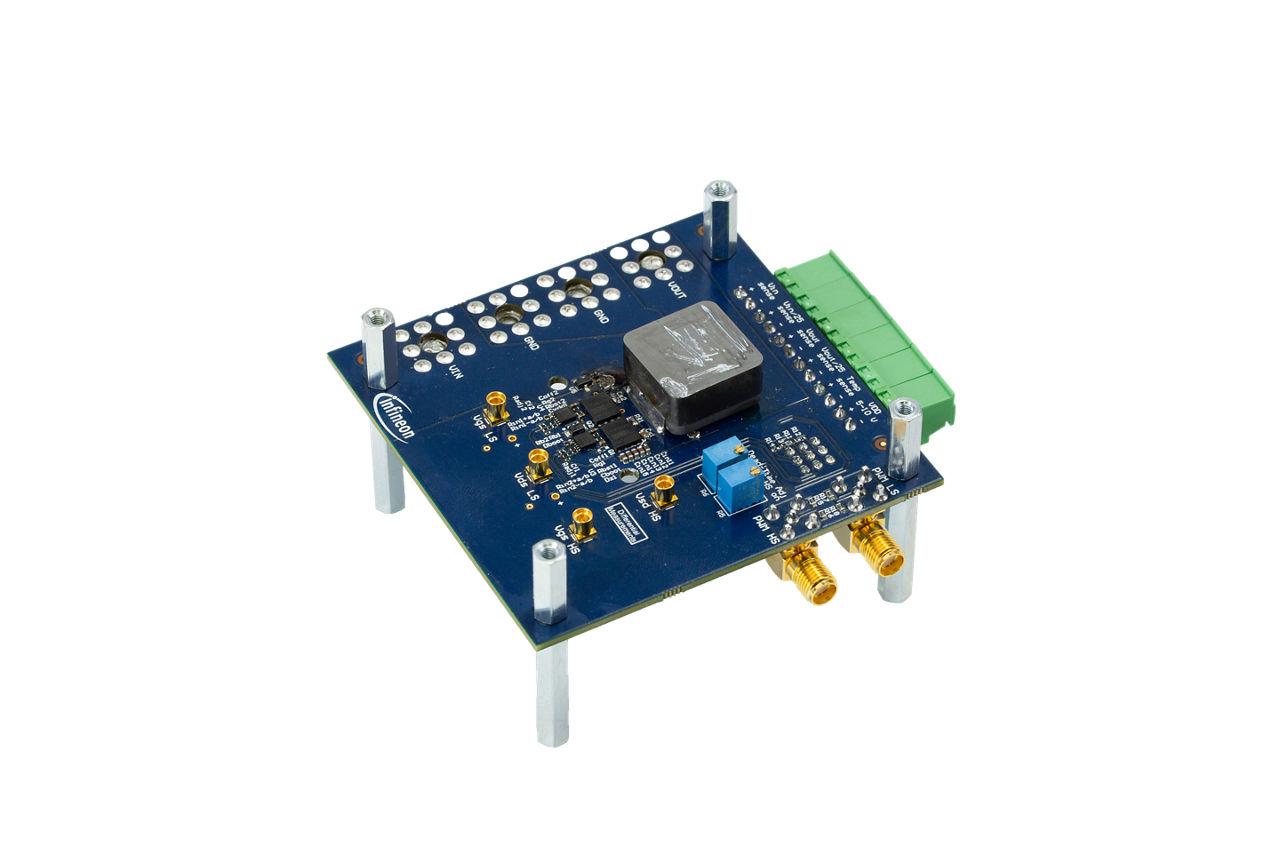

The EVAL_7116G_100V_SSO8 is a board for general-purpose evaluation of OptiMOS™ 6 100 V in SSO8 package together with TDI EiceDriver™ 1EDN7116G. The board has an optimized layout for a hard-switching half-bridge, as well as waveform measurement points and other useful features to enable easy lab bench characterization of the switch and the driver.

Features

  • Optimized layout
  • Different PWM inputs options
  • On-board deadtime generation
  • On-board temperature sensing
  • Different heatsink assembly options
  • Optimized Measurement points

Benefits

  • Improved system efficiency
  • Measurment options flexbility
  • Easy lab bench characterization
  • Easy test setup configuration
