EVAL_6EDL7141_FOC_3SH

Reference design/evaluation board - BLDC motor drive based on the MOTIX™ 6EDL7141 smart three-phase driver
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_6EDL7141_FOC_3SH
EVAL_6EDL7141_FOC_3SH
ea.
User Manual

Product details

  • Configuration
    6EDL7141, XMC1404-VQFN64-200kB, IST011N06NM5
  • Frequency
    20 kHz
  • Input Type
    DC
  • Input Voltage
    36 V
  • Motor Power max
    1500 W
  • Product Name
    EVAL_6EDL7141_FOC_3SH
  • Target Application
    Battery powered BLDC motor drives, power and gardening tools, robotics and drones
  • Topology
    3-Phase half-bridge
  • Vout
    AC
Recommended
OPN
EVAL6EDL7141FOC3SHTOBO1
Product Status active and preferred
Infineon Package ---
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package ---
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

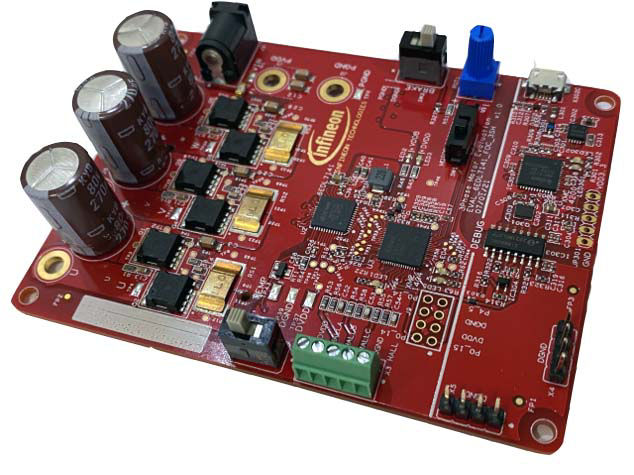

The EVAL_6EDL7141_FOC_3SH features fully configurable operating parameters with on-board debugger ready for direct USB connection to PC. The BLDC motor drive board uses sensor-less FOC based on the MOTIX™ 6EDL7141 smart three-phase driver.

Features

  • BLDC motor drive sensor-less FOC
  • configurable on-board power supplies
  • Configurable protection modes
  • Built-in debugger, direct connect to USB
  • Operates independently or with GUI

Benefits

  • High efficiency
  • Low component count
  • Configurable operating parameters
  • Fully protected

Applications
