EVAL_600W_12V_LLC_P7

Design for a 600W half-bridge LLC converter using 600V CoolMOS™ P7 SJ MOSFET
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_600W_12V_LLC_P7
EVAL_600W_12V_LLC_P7
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    Microcontroller, MOSFET, Gate Driver
  • Frequency
    90 kHz to 400 kHz
  • Input Type
    DC
  • Mounting
    THD, SMD
  • Output Current
    0 A to 50 A
  • Output Voltage
    12 V
  • Pout
    0 W to 600 W
  • Qualification
    Industrial
  • Sub Application
    Industrial, Server
  • Supply Voltage
    350 V to 410 V
  • Target Application
    Power Supplies
  • Topology
    LLC, Half Bridge
Recommended
OPN
EVAL600W12VLLCP7TOBO1
Product Status active
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

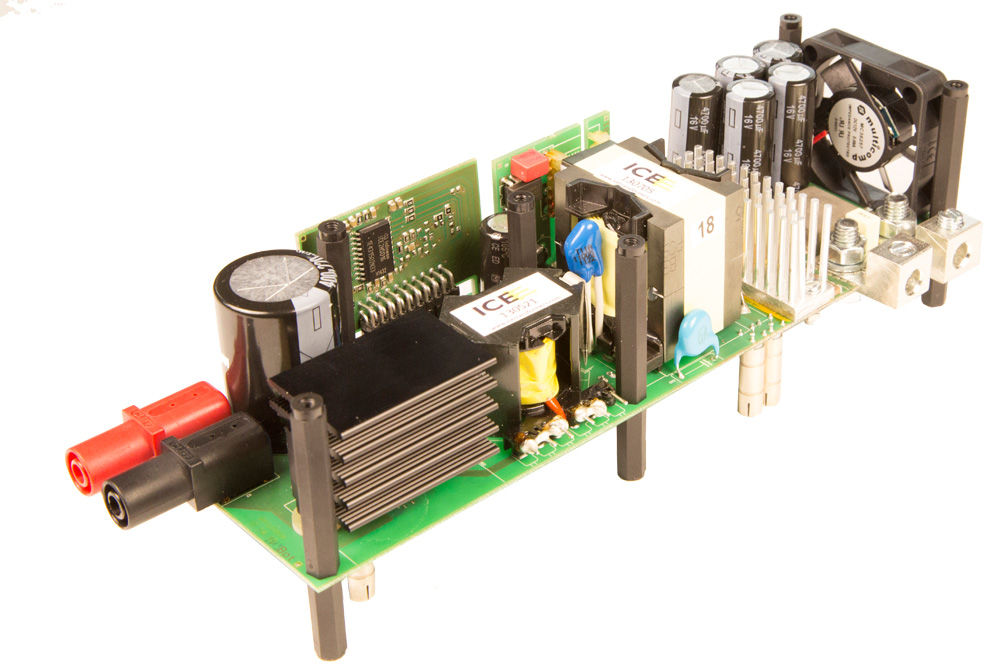

The evaluation board illustrates the design of a half-bridge LLC stage for a server SMPS aiming for 80+ Titanium standard efficiency. It uses 600V CoolMOS™ P7 SJ MOSFET (IPP60R180P7), OptiMOS™ 40V low-voltage power MOSFET, QR CoolSET™ (ICE2QR2280Z), EiceDRIVER™ 2EDL hi-low side driver (2EDL05N06PF), EiceDRIVER™ 2EDN low-side gate driver (2EDN7524F), and analog LLC controller (ICE2HS01G).

Features

  • Best-in-class high voltage MOSFETs
  • Best-in-class low voltage MOSFETs
  • Analog control
  • Optimized magnetic design
  • Accurate driving scheme

Benefits

  • 80+ Titanium Stardard achieved
  • Optimal use of MOSFET devices
  • ZVS achieved in entire load range
  • Safe MOSFETs operation in LLC

Applications
