EVAL_4KVA_230VAC_5LINV

Reference design/demo board - 5-level flying capacitor active neutral-point-clamped inverter design
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_4KVA_230VAC_5LINV
EVAL_4KVA_230VAC_5LINV
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Configuration
    IFX91041EJV33, IPT60R022S7, XMC4700-F144F2048 AA, 2EDF7275F, BSC093N15NS5
  • Dimensions
    227mm×230mm×170mm
  • Family
    OptiMOS™ 5
  • Input Type
    DC
  • Output Current max
    32 A
  • Output Voltage
    220 V to 240 V
  • Pout max
    4000 W
  • Qualification
    Standard
  • Supply Voltage
    380 V to 420 V
  • Target Application
    Solar String Inverter, Solar Energy Systems
  • Topology
    Topology not found, Multilevel
Recommended
OPN
EVAL4KVA230VAC5LINVTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

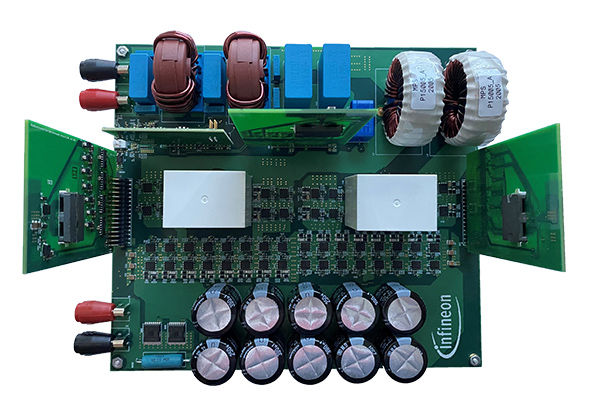

The EVAL_4kVA_230VAC_5LINV board features 150V OptiMOS™ 5 technology, XMC4700 microcontroller, and EiceDRIVER™ 2EDF7275F gate driver, achieving ultra-high efficiency exceeding 99%. It supports a nominal 400VDC input voltage, providing 230VRMS, 60Hz pure sine wave output with a maximum continuous power of 4.0kVA. It can safely sustain a 50% overload for 10 seconds.

Features

  • 5-level hybrid inverter topology
  • No heat sinking
  • No forced air cooling
  • XMC™ microcontroller based

Benefits

  • Excellent efficiency over load
  • Outstanding thermal performance
  • Significantly reduced time to market

Applications
