EVAL_3KW_2LLC_P7_47

High voltage DC-DC stage of a 3kW telecom/industrial SMPS
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_3KW_2LLC_P7_47
EVAL_3KW_2LLC_P7_47
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    Gate Driver, Microcontroller, MOSFET
  • Frequency
    90 kHz to 400 kHz
  • Input Type
    DC
  • Output Current
    0 A to 55 A
  • Output Voltage
    44 V to 58 V
  • Pout
    0 W to 3000 W
  • Qualification
    Industrial
  • Sub Application
    Telecom, Industrial
  • Supply Voltage
    350 V to 410 V
  • Target Application
    Power Supplies
  • Topology
    LLC
OPN
EVAL3KW2LLCP747TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

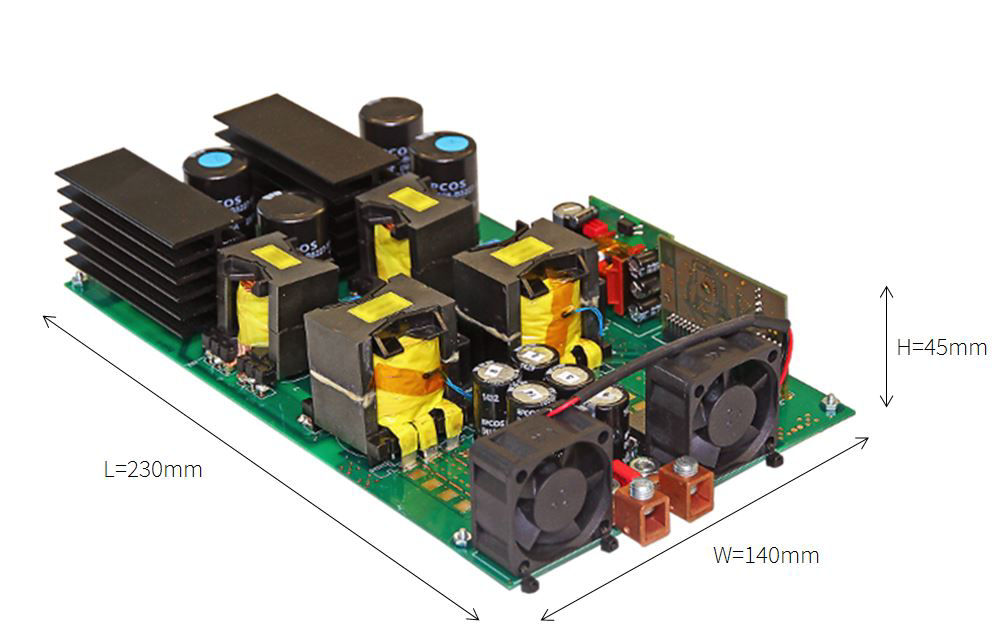

Full Infineon solution for the high voltage DC-DC stage of a 3kW telecom/industrial SMPS with 600V CoolMOS™ P7 power MOSFET.

Features

  • Dual phase concept
  • Full digital control
  • Graphical user interface (GUI)

Benefits

  • High and flat efficiency plot
  • Optimal use of MOSFET devices
  • LLC critical conditions prevention
  • Flexible design parameters setting
  • User friendly parameters setting
