EVAL_3K3W_LLC_HB_CFD7

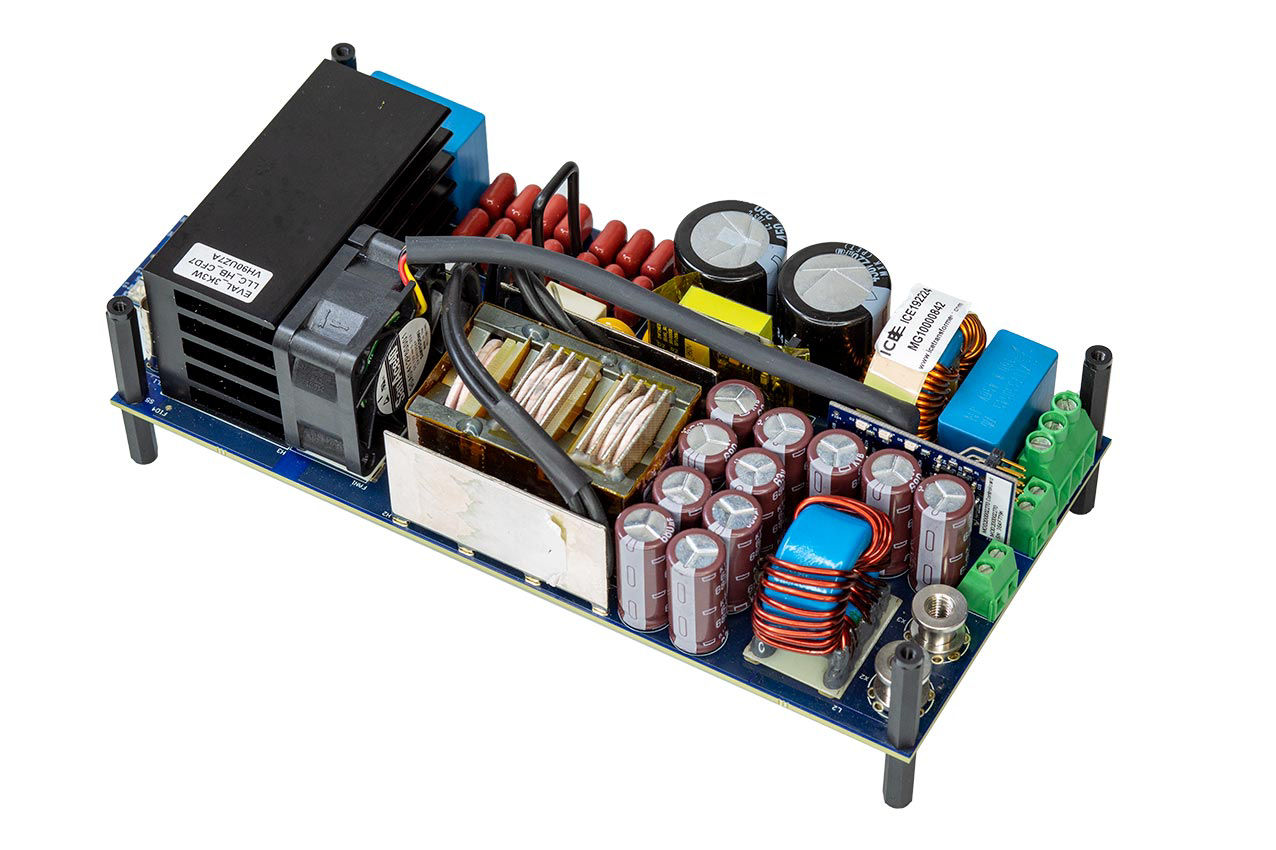

Evaluation board 3300 W 52 V LLC with 600 V CoolMOS™ CFD7
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_3K3W_LLC_HB_CFD7
EVAL_3K3W_LLC_HB_CFD7
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Dimensions
    205 mm x 100 mm x 40 mm
  • Frequency
    45 kHz to 250 kHz
  • Input Type
    DC
  • Output Current max
    67 A
  • Output Voltage
    43.5 V to 59.5 V
  • Pout max
    3300 W
  • Product Category
    Microcontroller, Gate Driver, MOSFET, CoolMOS™
  • Qualification
    Standard
  • Sub Application
    Telecommunications, Telecom, SMPS
  • Supply Voltage
    350 V to 415 V
  • Target Application
    Power Supplies
  • Topology
    Half Bridge, LLC
Recommended
OPN
EVAL3K3WLLCHBCFD7TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 3300W LLC DC-DC converter achieves 98.1% peak efficiency and a power density of 4 W/cm³ (66 W/in³) through SMD packages, innovative stacked magnetic construction, and a cooling solution. It demonstrates the feasibility of HB LLC as a high-efficiency topology, showcasing digital control by Infineon XMC™ microcontrollers and the reliability and performance of Infineon devices.

Features

  • High efficiency and power density
  • Integrated magnetics structure
  • Full digital control
  • Graphical User Interface (GUI)
  • Configurable variable voltage out

Benefits

  • Best-in-class HV & LV power devices
  • Nearly to full ZVS inall load range
  • Full digital control
