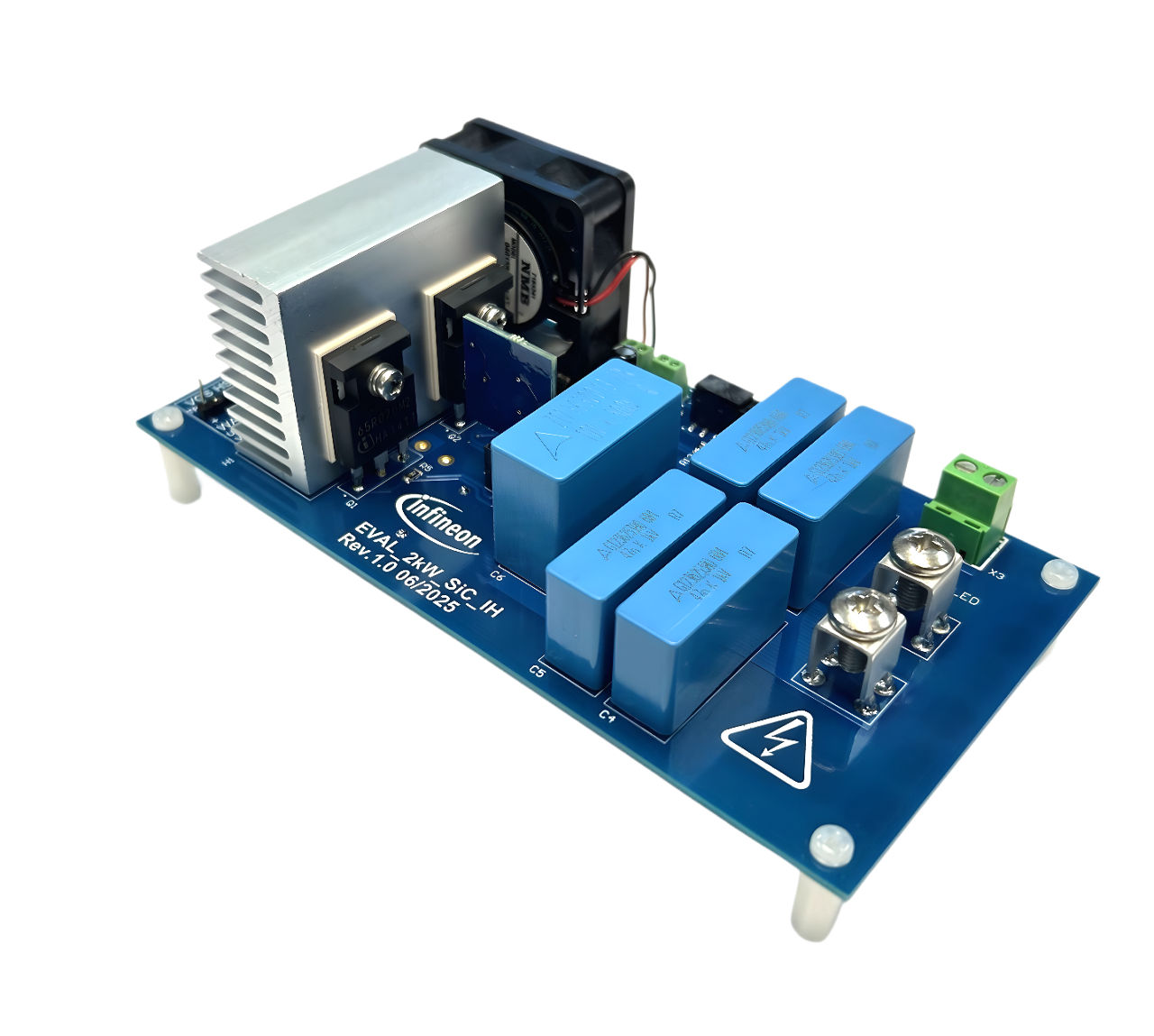

EVAL_2KW_SIC_IH

NEW
Evaluation board for high-frequency, 2 kW induction heating applications featuring CoolSiC™ MOSFET 650 V G2
Application Notes

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_2KW_SIC_IH
EVAL_2KW_SIC_IH
Application Notes

Product details

  • Efficiency
    99.7%
  • Input Voltage max
    330 V
  • Output Current
    0 A to 20 A
Recommended
OPN
EVAL2KWSICIHTOBO1
Product Status active and preferred
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The evaluation board EVAL_2KW_SiC_IH features the new CoolSiC™ MOSFETs 650 V G2 family, specifically designed for induction heating and resonant switching applications up to 150 kHz. It demonstrates the functionality and key features of the CoolSiC™ MOSFETs G2 in combination with the level-shift EiceDRIVER™ gate driver ICs based on SOI technology.

Features

  • 99.7% ultra-high efficiency at 2 kW
  • 1.3 - 1.8% higher efficiency
  • High fsw operation at 100 kHz to 150 kHz

Benefits

  • Potential elimination of cooling fans
  • System cost savings & higher reliability
  • Power reduction of AUX power supply
  • Reduction of passive components

Applications

Induction cooking
