Active and preferred

EVAL-2ED2742S01GM1

Evaluation Board for 160 V half-bridge SOI gate driver IC with 150 V OptiMOS™ Power MOSFET and iMOTION™ MADK
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-2ED2742S01GM1
EVAL-2ED2742S01GM1
ea.
User Manual

Product details

  • Applications
    3-Phase Motor Control
  • Board Type
    Evaluation Board
  • Description
    Evaluation board for MOTIX™ 160 V Half Bridge SOI gate driver IC (2ED2742S01G) with 150 V OptiMOS™ Power MOSFET (BSC074N15NS5) and iMOTION™ MADK (IMC101T)
  • Dimensions
    120x60
  • Family
    MOTIX™ Gate Driver, 150 V OptiMOS™
  • Frequency
    0 kHz to 200 kHz
  • Input Type
    DC
  • Interfaces
    M1 iMOTION™ Modular Application Design Kit (MADK)
  • Motor Power max
    500 W
  • Mounting
    Surface Mount (SMD)
  • Output Current (Source)
    1 A
  • Output Current (Sink)
    2 A
  • Pout max
    500 W
  • Product Name
    EVAL-2ED2742S01GM1
  • Qualification
    Industrial
  • Supply Voltage max
    72 V
  • Target Application
    Cordless power tool, Battery-powered tool, Multicopter and drones, Micro-inverter-solutions
  • Topology
    3 phase motor drive
Recommended
OPN
EVAL2ED2742S01GM1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

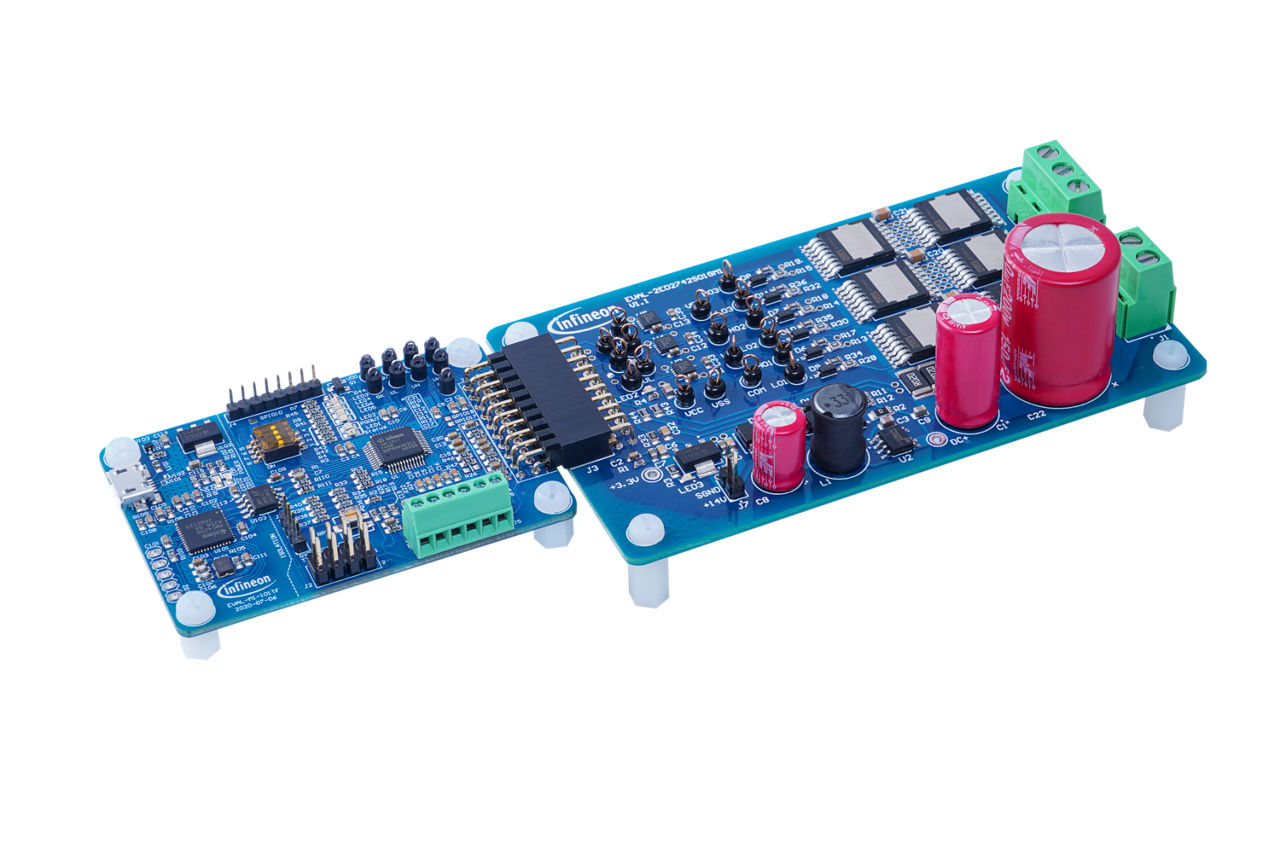

The EVAL-2ED2742S01GM1 evaluation kit for Battery Powered Applications (BPA) consists of a three-phase inverter power board with the 160 V rated 2ED2742S01G (3 x 3 VSON-10) half-bridge gate driver drives six 150 V rated OptiMOS™ MOSFETs BSC074N15NS5 (5 x 6 Super SO8). M1 connector that is used to interface with iMOTION™ Modular Application Design Kit (MADK) control card – EVAL-M1-101T.

Features

  • Nominal DC input voltage of 48 V
  • Maximum 500 W motor power
  • 500 W motor power with heatsink
  • Single shunt for current sensing
  • Sensing of DC-link voltage
  • +12 V and +3.3 V auxiliary power
  • M1 interface with iMOTION™
  • 3x 160V Gate driver: 2ED2742S01G
  • 6x 150V OptiMOS™:  BSC074N15NS5
  • 1x iMOTION™: IMC101T

Benefits

  • Widest input voltage range ~140V
  • Lower system level BOM cost
  • Superior latchup immunity 160 V SOI
  • 150 OptiMOS™ MOSFET  (7.4 mΩ,23 nC)
  • High efficiency control w/ iMotion™
